RAVENOL Fluid Syringe with Discharge

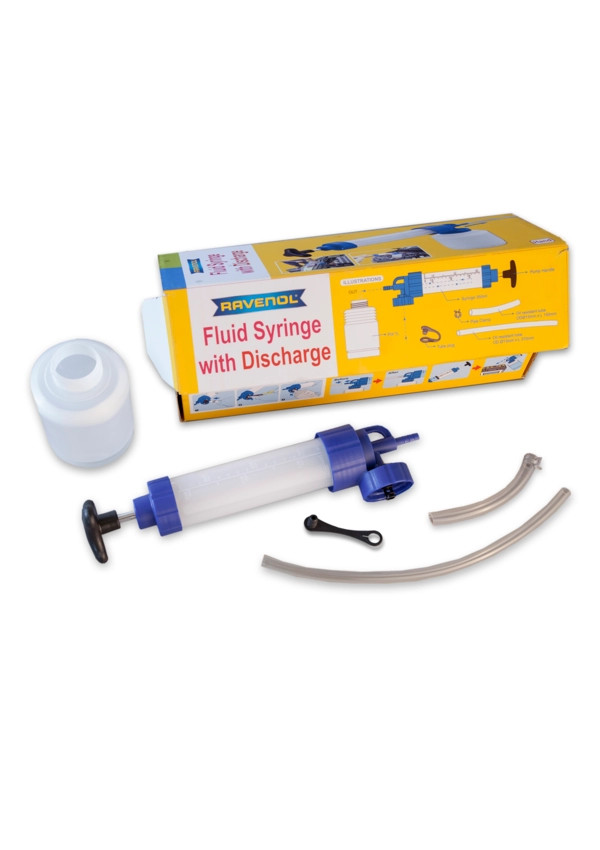

RAVENOL Fluid Syringe with Discharge is a transparent plastic oil extractor pump with an oil syringe and a container with a capacity of approx. 1 L. Using this product, oils and other liquids can be extracted out of the attached container and also refilled using pressure.

RAVENOL Fluid Syringe with Discharge is suitable for:

Engine, hydraulic and transmission oils up to SAE 140 and other non-corrosive liquids.

RAVENOL Fluid Syringe with Discharge has a capacity of approx. 0.35 litres in the syringe and approx. 1 L in the attached container. Two oil-resistant pipes are supplied with the syringe, one measuring 370 mm in length with a diameter of 13 mm and one measuring 150 mm in length with a diameter of 15 mm. The product is also supplied with a stopper to seal the narrow pipe and a clamp to securely close off the wider pipe.

RAVENOL Fluid Syringe with Discharge can be dismantled, making it easy to clean.

Technical data/accessories:

Content Syringe: 0.35 litres

Capacity in ml and quarts: 100, 200, 300 ml and 1/8, 1/4, 3/8 quarts

Screw-on container, content: 1 litre

Capacity in L: 0.3/ 0.5/ 0.7

Pipe 1: ø 15 mm x 150 mm

Pipe 2: ø 13 mm x 370 mm

Pipe stopper for pipe 2

Clamp for pipe 1

Characteristics
