RAVENOL Catoel TO-4 SAE 60

RAVENOL Catoel TO-4 SAE 60 208 L

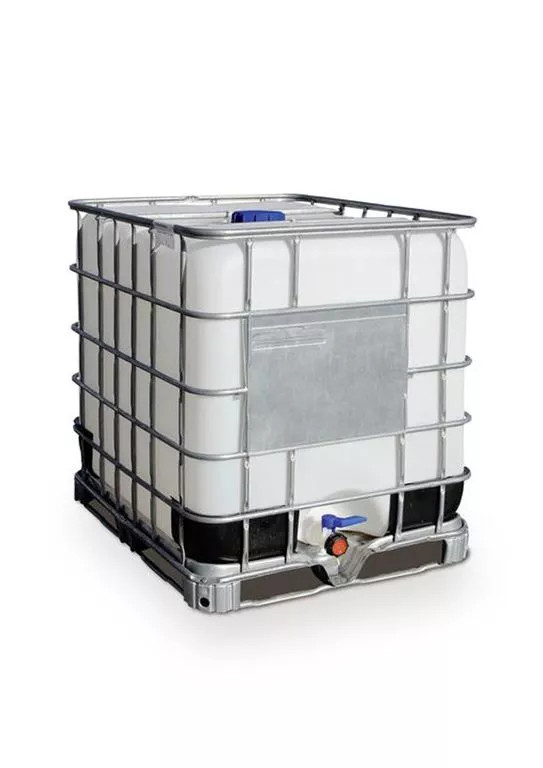

RAVENOL Catoel TO-4 SAE 60 1000 L
Category: Engine oil for agricultural vehicles and construct
Item number: 1310616
Viscosity: 60
Application: Agricultural machinery
Oil type: Mineral
Specifications: API CF , <p><b>RAVENOL Transfer Fluid BW 44 </b>was developed for use in Borg-Warner transmission systems BW 44-40 and BW 44-44 from 2016. </p> <p><b>RAVENOL Transfer Fluid BW 44 </b>provides a stable viscosity even under the highest loads. It is particularly suitable when a specification according to MB 236.13 is required for Mercedes A001 989 23 03; Mercedes transfer case A2202800700, A2112801000, A2112800900, A2032800700, A2112801000, A2112800900, A2032800700 for 4Matik S-Klasse W220, E-Klasse W211, C-Klasse W203. Also suitable for Chrysler transfer case 68214750AC, 68214751AB, 68214751AC for Chrysler 300C LX, Dodge Charger LX/LD, Dodge Magnum LX. </p>
Recommendations: Allison C4 , Caterpillar TO-4 , Eaton Fuller , Komatsu KES 07.868.1 (2002) , Caterpillar TO-4M , ZF TE-ML 03C , ZF TE-ML 07F

RAVENOL CATOEL TO-4 SAE 60 is a special transmission oil developed specifically to meet the stringent requirements of the Caterpillar TO-4 specification. It ensures maximum wear protection in different gears, like side drives and differentials optimized friction coefficient in the power-shift transmissions, wet brakes and clutches and provides maximum service life of the units.

Application note

RAVENOL CATOEL TO-4 SAE 60 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.

Characteristics

  • Highest wear protection.
  • High oxidation stability.
  • Excellent viscosity-temperature behavior.
  • Optimization of friction coefficient behavior.
  • Guarantees maximum life of the units.

Technical data

Property Unit Data Audit
Aussehen/Farbe gelbbraun VISUELL
Viskosität bei 100 °C mm²/s 23,5 DIN 51562-1
Viskosität bei 40 °C mm²/s 312,6 DIN 51562-1
Viskositätsindex VI 95 DIN ISO 2909
Dichte bei 20 °C kg/m³ 903,0 EN ISO 12185
Flammpunkt °C 272 DIN EN ISO 2592
Pourpoint °C -12 DIN ISO 3016
