RAVENOL Catoel TO-4 SAE 10W

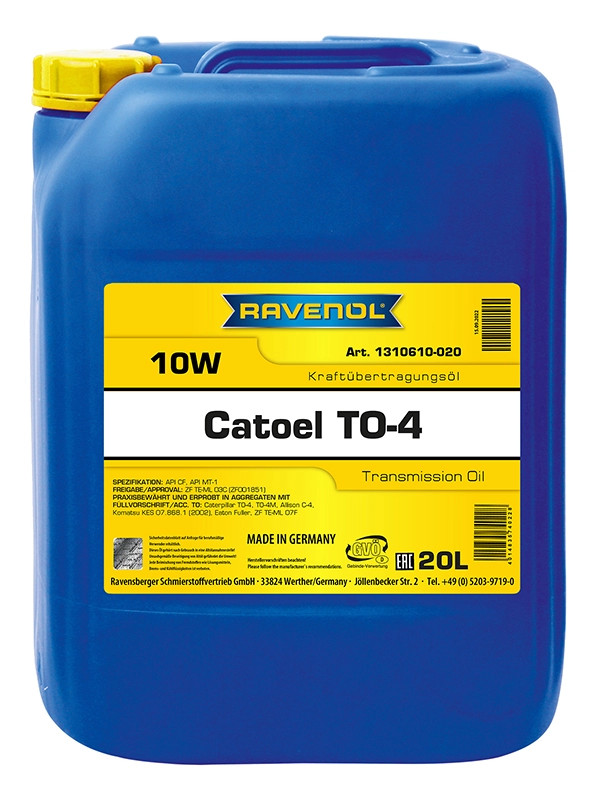

RAVENOL Catoel TO-4 SAE 10W 20 L

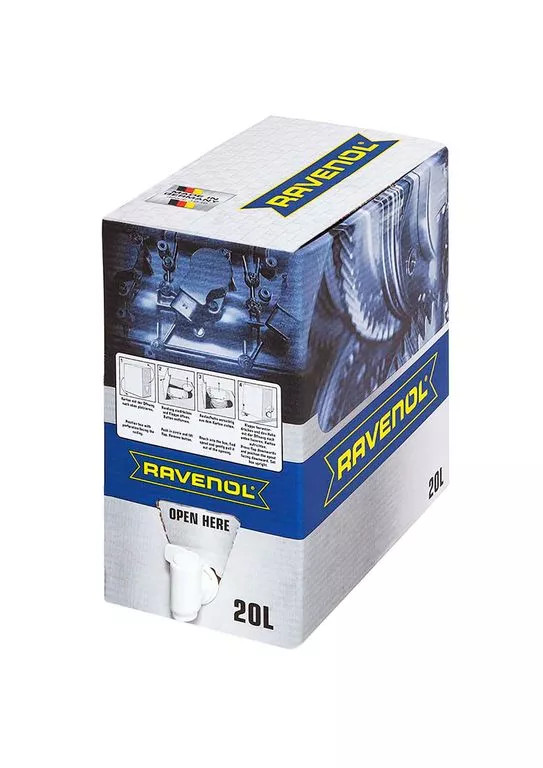

RAVENOL Catoel TO-4 SAE 10W 20 L

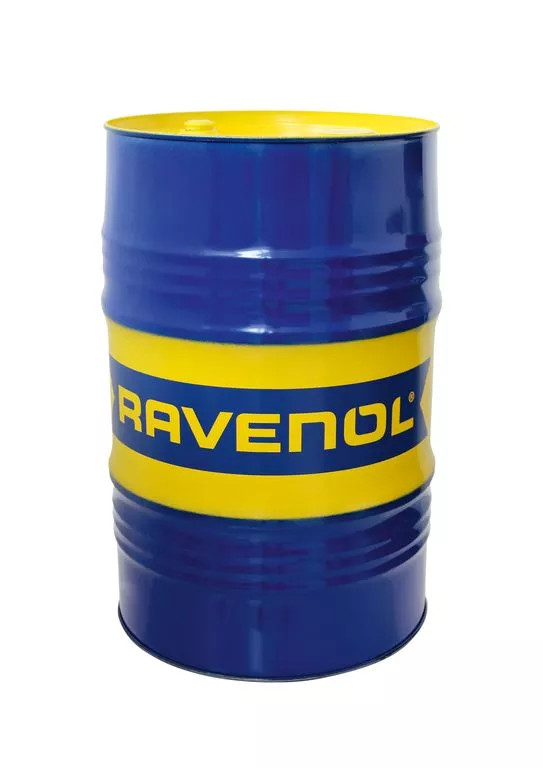

RAVENOL Catoel TO-4 SAE 10W 60 L

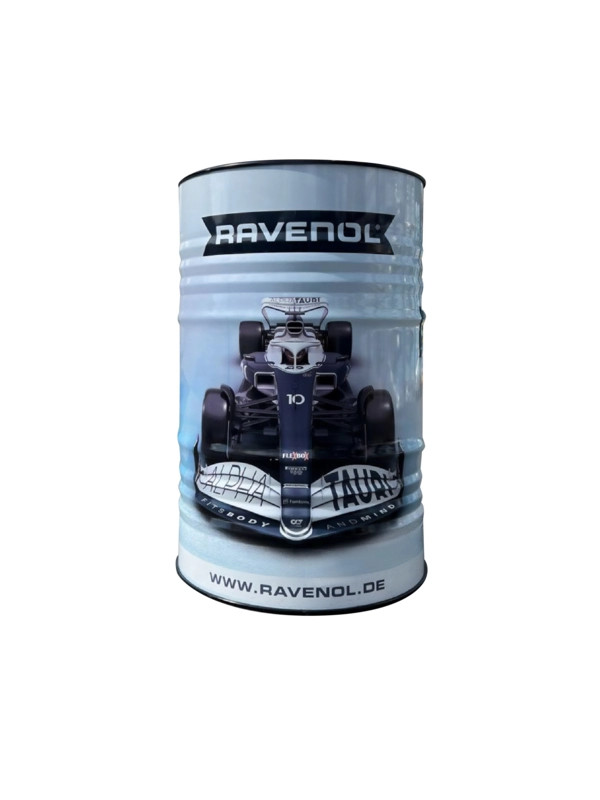

RAVENOL Catoel TO-4 SAE 10W 208 L
RAVENOL Catoel TO-4 SAE 10W 208 L
RAVENOL Catoel TO-4 SAE 10W 1000 L
Category: Engine oil for agricultural vehicles and construct
Item number: 1310610
Viscosity: 10W
Application: Agricultural machinery
Oil type: Mineral
Specifications: API CF , <p><b>RAVENOL Transfer Fluid BW 44 </b>was developed for use in Borg-Warner transmission systems BW 44-40 and BW 44-44 from 2016. </p> <p><b>RAVENOL Transfer Fluid BW 44 </b>provides a stable viscosity even under the highest loads. It is particularly suitable when a specification according to MB 236.13 is required for Mercedes A001 989 23 03; Mercedes transfer case A2202800700, A2112801000, A2112800900, A2032800700, A2112801000, A2112800900, A2032800700 for 4Matik S-Klasse W220, E-Klasse W211, C-Klasse W203. Also suitable for Chrysler transfer case 68214750AC, 68214751AB, 68214751AC for Chrysler 300C LX, Dodge Charger LX/LD, Dodge Magnum LX. </p>
Approvals: ZF TE-ML 03C (ZF001851)
Recommendations: Allison C4 , Caterpillar TO-4 , Eaton Fuller , Komatsu KES 07.868.1 (2002) , Caterpillar TO-4M , ZF TE-ML 07F

RAVENOL CATOEL TO-4 SAE 10W is a special oil for hydraulic- and transmission equipment.

RAVENOL CATOEL TO-4 SAE 10W fulfils the recommendations of Caterpillar TO-4 specification and is suitable for lubrication of power shift transmission, differentials, final drives and hydraulic equipment of earth-moving equipment, for which a Caterpillar TO-4 or Allison C-4 fluid is required.

Application note

RAVENOL CATOEL TO-4 SAE 10W ensures maximum wear protection in various gears, such as side drives and differentials, optimized the friction coefficient in power shift transmissions, wet brakes and clutches and provides maximum service life of the units.

Characteristics

  • Highest wear protection
  • High oxidation stability
  • Excellent viscosity-temperature behavior
  • Optimization of friction coefficient behavior
  • Guarantees maximum life of the units

Technical data

Property Unit Data Audit
Aussehen/Farbe gelbbraun VISUELL
Viskosität bei 100 °C mm²/s 6,4 DIN 51562-1
Viskosität bei 40 °C mm²/s 37,2 DIN 51562-1
Viskositätsindex VI 123 DIN ISO 2909
Dichte bei 20 °C kg/m³ 860,0 EN ISO 12185
Flammpunkt °C 240 DIN EN ISO 2592
Pourpoint °C -30 DIN ISO 3016
