RAVENOL Super Synthetic Truck SAE 5W-30

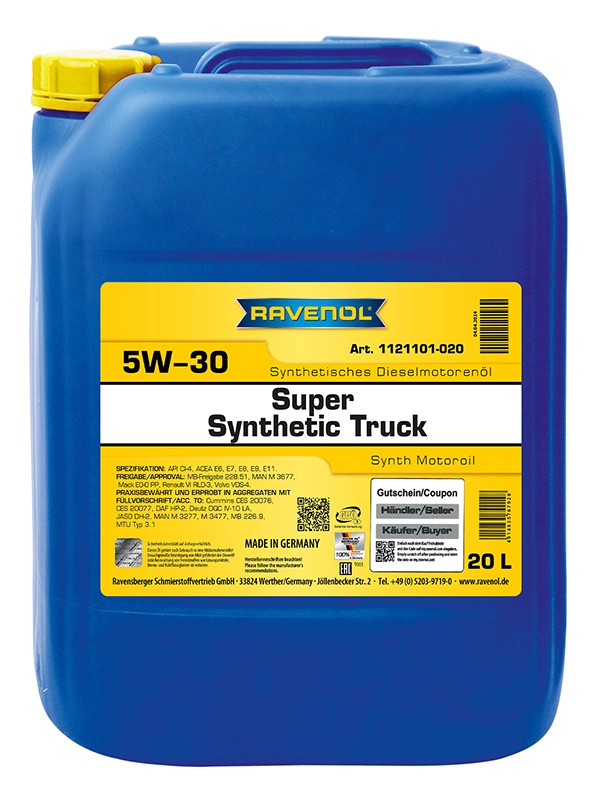

RAVENOL Super Synthetic Truck SAE 5W-30 20 L

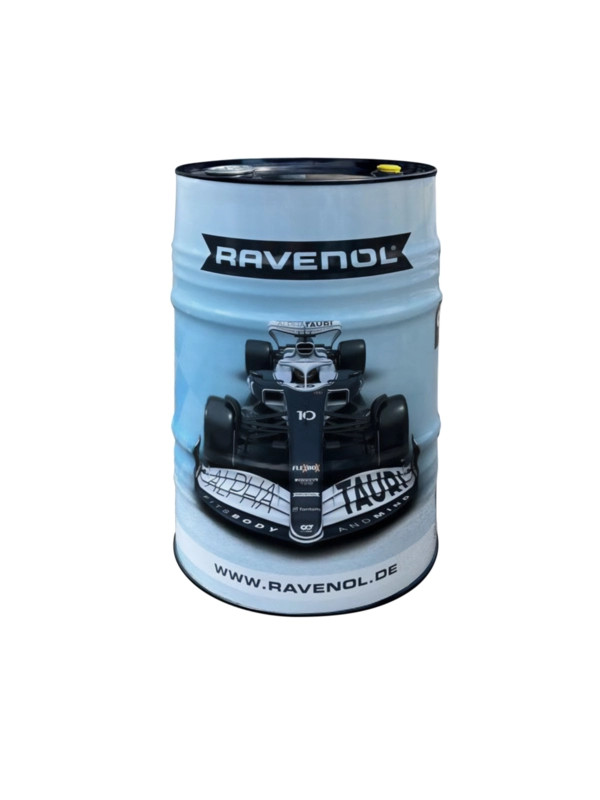

RAVENOL Super Synthetic Truck SAE 5W-30 60 L

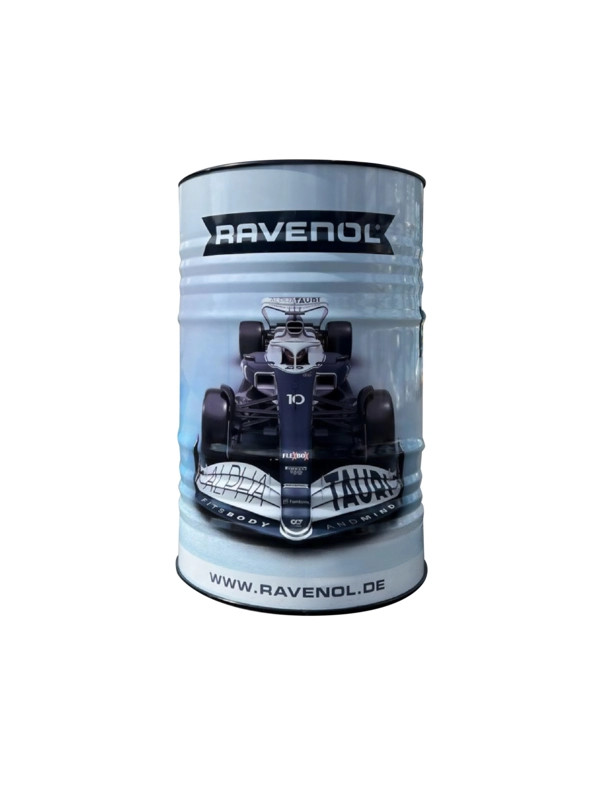

RAVENOL Super Synthetic Truck SAE 5W-30 208 L

RAVENOL Super Synthetic Truck SAE 5W-30 1000 L

Category: Truck engine oil

Item number: 1121101

Viscosity: 5W 40

Application: Truck , Agricultural machinery

Oil type: Synthetic

Specifications: ACEA E11 , ACEA E6 , ACEA E7 , ACEA E8 , ACEA E9 , API CK-4 , API SN

Approvals: DTFR 15C110 , Mack EO-O Premium Plus , MAN M 3677 , Renault VI RLD-3 , VOLVO VDS-4

Recommendations: Cummins CES 20076 , Cummins CES 20077 , Cummins CES 20081 , Cummins CES 20086 , DAF Extended drain , Deutz DQC IV-10 LA , DTFR 15C100 (MB 228.31) , JASO DH-2 , MAN M 3277 , MAN M 3477 , MB 226.9 , MB 228.51 , MTU Typ 3.1 , Renault RXD , Scania LDF , Scania LDF-4

RAVENOL Super Synthetic Truck SAE 5W-30 is a synthetic, diesel saving “Low SAPS” lorry motor oil based on the latest additive technology, with very special base oils. It was developed specifically for diesel engines under extreme conditions for use in any season. Excellent for use in EURO 4, EURO 5 and EURO 6 engines along with low-sulphur diesel. RAVENOL Super Synthetic Truck SAE 5W-30 is suitable for use in engines with or without particle filter and catalytic converter.

The cold viscosity SAE 5W ensures reliable cold starting in extreme temperatures (low cold-starting wear) and the quickest possible supply to all lubricating points. The high-temperature viscosity SAE 30 safely masters extreme stress. Friction loss and wear are reduced.

Application note

RAVENOL Super Synthetic Truck SAE 5W-30 is an all-season Low SAPS high performance commercial vehicle motor oil fine tuned for the new exhaust emission directives. All-season use in EURO IV, EURO V and EURO VI engines.

RAVENOL Super Synthetic Truck SAE 5W-30 is suitable for oil change intervals according to manufacturer specifications to over 100,000 km.

Characteristics

Outstanding detergent properties, no residues in the engine
Outstanding dispersing properties – prevents cold sludge and residue formation
Extends the life of the particle filter by reducing the tendency to form particles
Low sulphate ash-, phosphorus- and sulphur content “Low SAPS
Outstanding wear protection
Outstanding oxidation stability
Outstanding high temperature stability, high viscosity index
Low fuel consumption for cost effectiveness
Outstanding cold starting properties

Technical data

Property	Unit	Data	Audit
Aussehen/Farbe		braun	VISUELL
Sulfatasche	%wt.	0,96	DIN 51575
TBN	mg KOH/g	10,8	ASTM D2896
Viskosität bei 100 °C	mm²/s	12,15	DIN 51562-1
Viskosität bei 40 °C	mm²/s	70,8	DIN 51562-1
Viskositätsindex VI		170	DIN ISO 2909
CCS Viskosität bei -35 °C	mPa*s	5530	ASTM D5293
Dichte bei 20 °C	kg/m³	849,0	EN ISO 12185
Flammpunkt	°C	228	DIN EN ISO 2592
HTHS Viskosität bei 150 °C	mPa*s	3,7	ASTM D5481
Low Temp. Pumping viscosity (MRV) bei -40 °C	mPa*s	22.500	ASTM D4684
Noack Verdampfungstest	% M/M	9,1	ASTM D5800
Pourpoint	°C	-42	DIN ISO 3016
