RAVENOL TTC Concentrate Protect C11

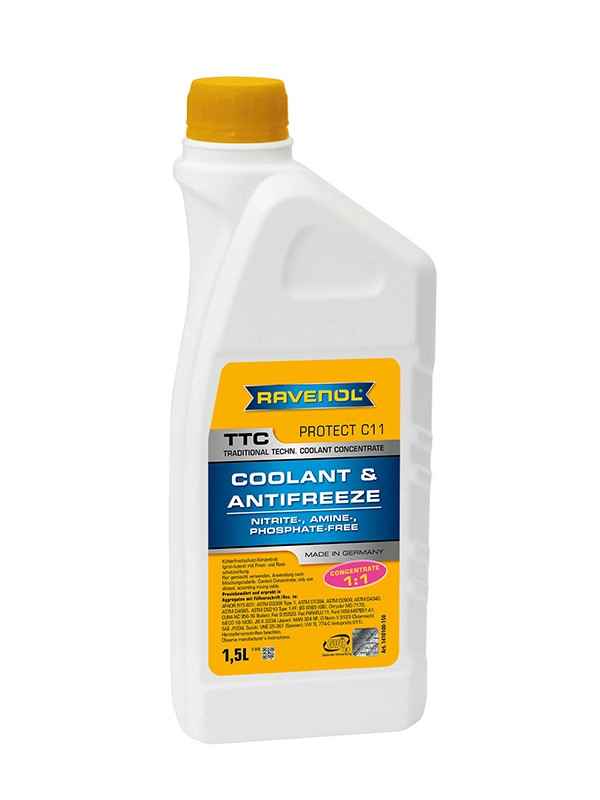

RAVENOL TTC Concentrate Protect C11 1.5 St

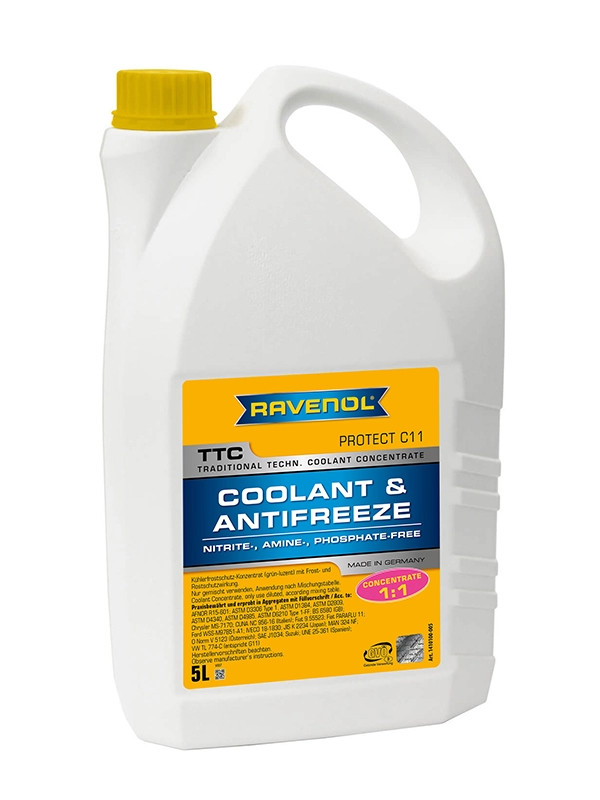

RAVENOL TTC Concentrate Protect C11 5 St

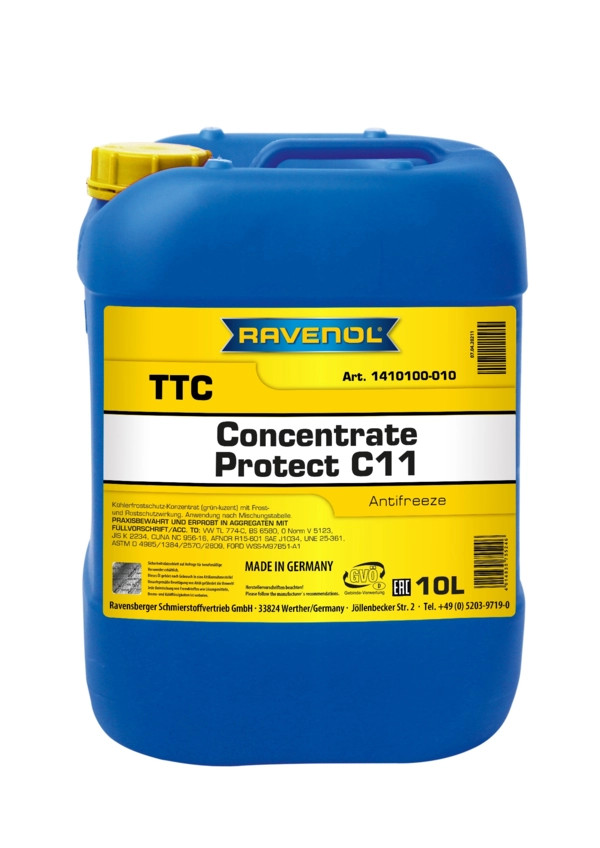

RAVENOL TTC Concentrate Protect C11 10 St

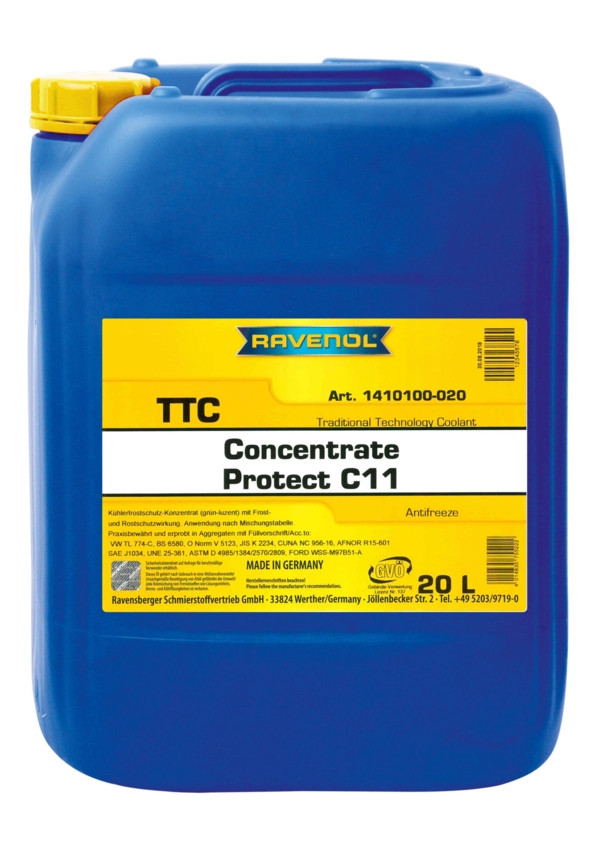

RAVENOL TTC Concentrate Protect C11 20 St
RAVENOL TTC Concentrate Protect C11 20 St

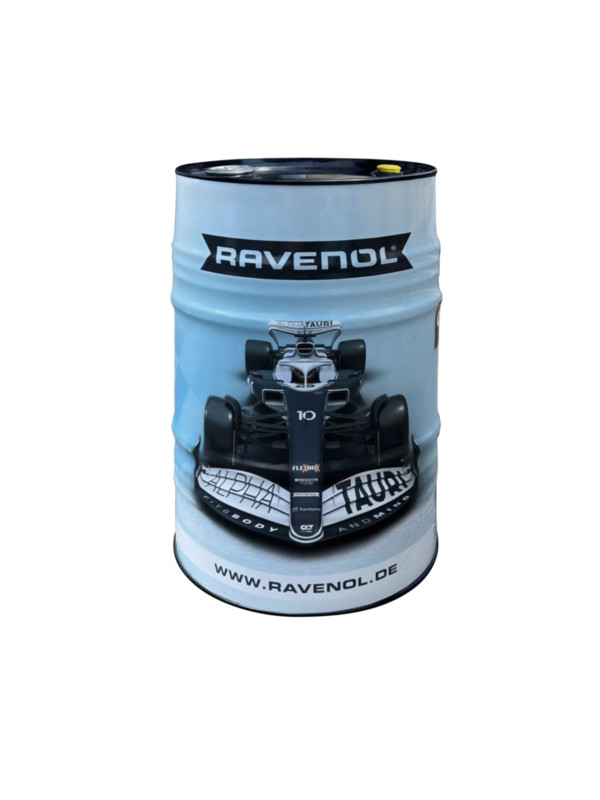

RAVENOL TTC Concentrate Protect C11 60 St
RAVENOL TTC Concentrate Protect C11 60 St
RAVENOL TTC Concentrate Protect C11 208 St
RAVENOL TTC Concentrate Protect C11 1000 St
Category: Radiator antifreeze
Item number: 1410100
Application: Industry , Truck , Agricultural machinery , Marine , Motorcycle , Classic cars , Car
Recommendations: AFNOR R15-601 , ASTM D1384 , ASTM D2809 , ASTM D3306 , ASTM D4340 , ASTM D4985 , ASTM D6210 Type 1-FF , BS 6580 (GB) , Chrysler MS-7170 , CUNA NC 956-16 (Italien) , Fiat 9.55523 , Fiat PARAFLU 11 , FORD WSS-M97B51-A1 , IVECO 18-1830 , JIS K 2234 (Japan) , MAN 324 NF , intern O Norm V 5123 (Österreich) , SAE J1034 , Outstanding detergent properties, no residues in the engine<br />Outstanding dispersing properties – prevents cold sludge and residue formation<br />Extends the life of the particle filter by reducing the tendency to form particles<br />Low sulphate ash-, phosphorus- and sulphur content “Low SAPS<br />Outstanding wear protection<br />Outstanding oxidation stability<br />Outstanding high temperature stability, high viscosity index<br />Low fuel consumption for cost effectiveness<br />Outstanding cold starting properties<br /> , UNE 25-361 (Spanien) , VW TL 774-C (entspricht G11)

RAVENOL TTC Trad. Techn. Coolant Concentrate is an eco-friendly 1.2- Ethanediol (monoethylene glycol) based nitrite, amine and phosphate-free coolant for cooling circuits in combustion engines which provides maintenance-free corrosion and frost protection. The product is formulated as a long-term coolant based on a proven inhibitor development.

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Therefore automakers subject coolants to long corrosion and cavitation tests.

RAVENOL TTC Trad. Techn. Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.

Application note

RAVENOL TTC Trad. Techn. Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL TTC Trad. Techn. Coolant Concentrate with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

Table of mixing ratios
Antifreeze protection until Parts Antifreeze Parts Water
-20°C 35% 65%
-37°C 50% 50%
-50°C 60% 40%

Characteristics

  • Excellent for light metal engines
  • Good reserve alkalinity
  • High-quality corrosion additives for optimal corrosion protection
  • Elastomer compatible with elastomers used in automotive radiators

Technical data

Property Unit Data Audit
Aussehen/Farbe gelb-grün fluoreszent VISUELL
Reservealkalität ml0,1nHCl  <20 ASTM D1121
Siedepunkt °C 155 ASTM D1120
Wassergehalt Gew. % <5 ASTM D1123
Dichte bei 20 °C kg/m³ 1130,0 EN ISO 12185
Flammpunkt °C 112 DIN 51758
Gefrierpunkt (50 % Lösung) °C -37 ASTM D1177
pH-Wert bei 20 °C (50 Vol %) 8,4 ASTM D1287
