RAVENOL Turbo Oil T32

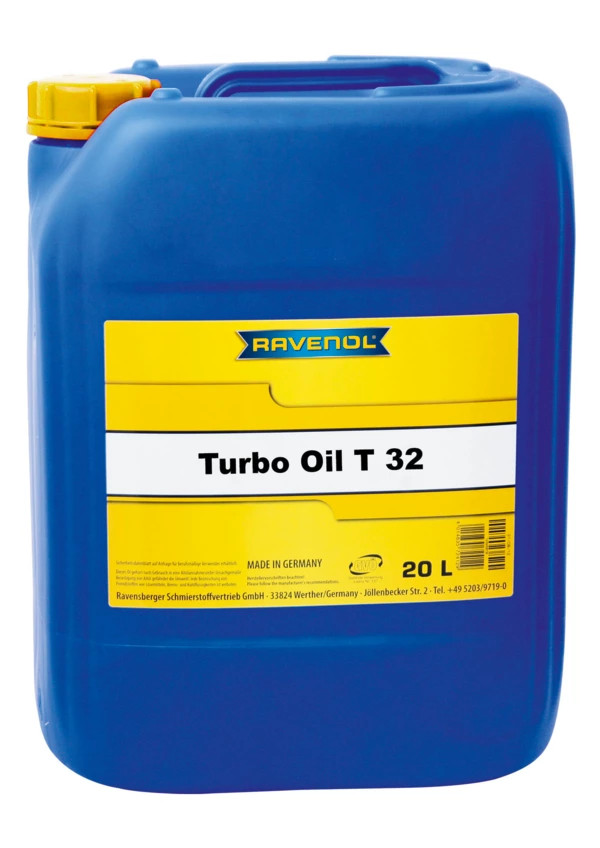

RAVENOL Turbo Oil T32 20 St
RAVENOL Turbo Oil T32 60 St
RAVENOL Turbo Oil T32 208 St
Category: Industrial oil
Item number: 1331114
Viscosity: <p><b>RAVENOL Natur-Petroleum </b>is for use in kerosene lamps and torches. Adjust the burner that the flame burns without smoke and soot. If necessary, re-adjust and refill. Observe the operating instructions of the lamp manufacturer. Do not pour in fire. The product is combustible. Lamps filled with this liquid keep absolutely out of the reach of children. </p>
Application: Industry
Oil type: Mineral
Specifications: DIN 51515-1 L-TD , DIN 51515-2 L-TG
Approvals: Siemens TLV 901304 , Siemens TLV 901305
Recommendations: Alstom HTGD 90117 V0001 S , British Standard BS 489 , Brown Boveri HTGD 90117 , CEGB Standard 207001 , General Electric GEK 32568 A , General Electric GEK 32568 C , MIL L-17672 D , US Steel 120 , Westinghouse Electric Corp. Turbine Oil Spec.

RAVENOL Turbo Oil T32

is a high quality lubricating oil for gas and steam turbines as well as for turbo compressors with and without gears, which meets the requirements of DIN 51515-2.

RAVENOL Turbo Oil T32

is based on high quality base oils with additives to improve the corrosion protection and resistance to aging.

RAVENOL Turbo Oil T32

is an all-purpose oil for turbines from specially selected base oils with the addition of special refined additives.

RAVENOL Turbo Oil T32 is zinc-free due to its formulation.

Application note

RAVENOL Turbo Oil T3

is used in stationary gas turbines, steam turbines and also in electrical or in driven by steam machines, such as generators, compressors, pumps and gearboxes.

RAVENOL Turbo Oil T3

is also for use in lubrication of hydraulic systems, compressors, gear transmissions and bearings.

Characteristics

  • Excellent thermal and oxidative stability
  • Excellent viscosity-temperature behavior
  • Very good oxidation stability
  • Good protection against corrosion of steel and non-ferrous metals
  • A very good air separation ability, which largely eliminates foam formation
  • Low pour point
  • Good wear behavior
  • Excellent water separation ability/demulsification behavior

Technical data

Property Unit Data Audit
Aussehen/Farbe L1.5 DIN ISO 2049
Reinheitsgrad 19/16/13 ISO 4406
Restschaum nach 600 s bei 25 °C ml 0 ISO 6247
Schadenskraftstufe (FZG-Test) 10 DIN ISO 14635-1
Schaumvolumen bei 25 °C ml 60 ISO 6247
Schaumzerfallzeit bei 25 °C s 245 ISO 6247
Viskosität bei 100 °C mm²/s 5,8 DIN 51562-1
Viskosität bei 40 °C mm²/s 32,1 DIN 51562-1
Viskositätsindex VI 122 DIN ISO 2909
Wasserabscheidevermögen s 35 DIN 51589-1
Wassergehalt % <0,01 DIN 51777-1
Dichte bei 20 °C kg/m³ 849,0 EN ISO 12185
Flammpunkt °C 232 DIN EN ISO 2592
Korrosionswirkung auf Kupfer pass DIN EN ISO 2160
Luftabscheidevermögen bei 50 °C, max. min 3 DIN ISO 9120
Neutralisationszahl mg KOH/g 0,06 DIN 51558-1
Pourpoint °C < -12 DIN ISO 3016
