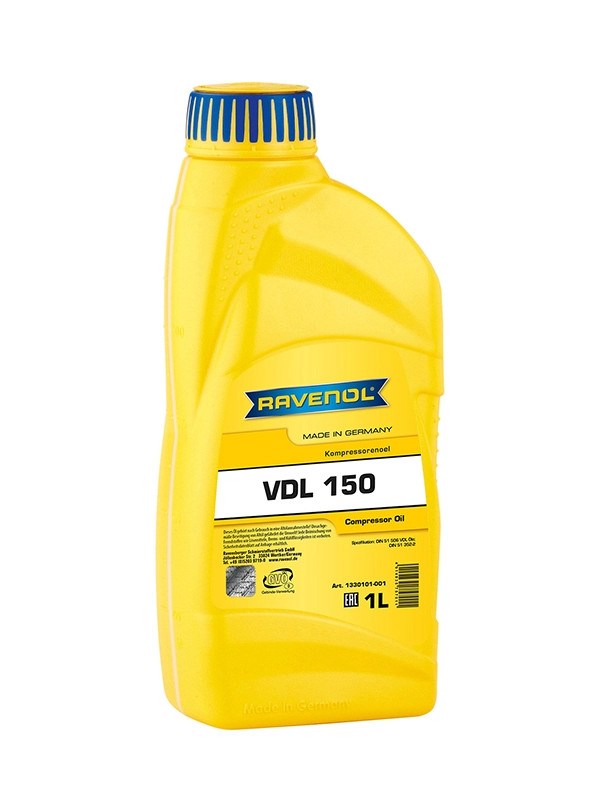

RAVENOL Kompressoren-Oel VDL 150 1 St

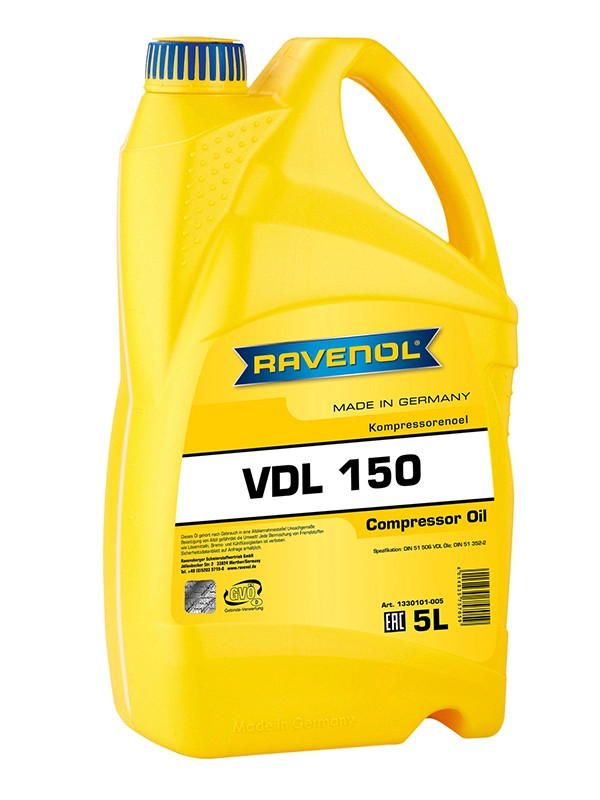

RAVENOL Kompressoren-Oel VDL 150 5 St

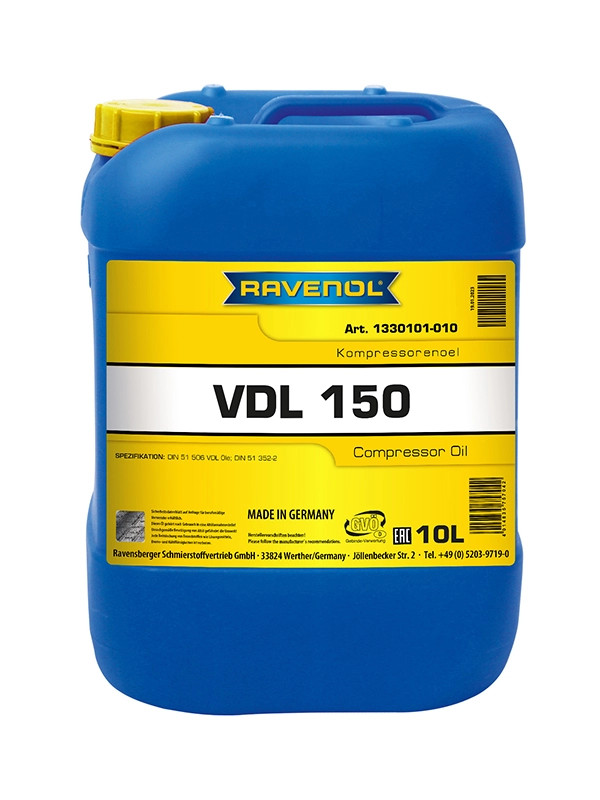

RAVENOL Kompressoren-Oel VDL 150 10 St

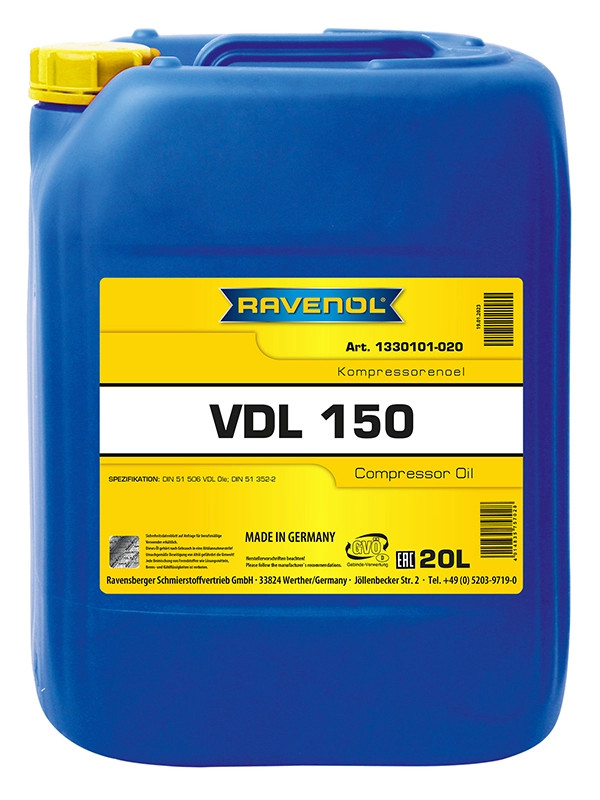

RAVENOL Kompressoren-Oel VDL 150 20 St
RAVENOL Kompressoren-Oel VDL 150 20 St
RAVENOL Kompressoren-Oel VDL 150 60 St
RAVENOL Kompressoren-Oel VDL 150 208 St
RAVENOL Kompressoren-Oel VDL 150 1000 St
Category: Industrial oil
Item number: 1330101
Viscosity: 150
Application: Industry
Oil type: Mineral
Specifications: DIN 51352-2 , DIN 51506 VDL

RAVENOL Kompressorenoel VDL 150 meets the high requirements of DIN 51506. Specifically designed with premium quality and age-resistant base oils.

RAVENOL Kompressorenoel VDL 150 has a good adhesion, is water repellent and wear-reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.

RAVENOL Kompressorenoel VDL 150 provides a secure lubrication not only in the upper temperature range, also in the cold state of the compressor to achieve a reduction of wear. By selected and coordinated additive composition the tendency to coking and the formation of flammable residues is minimized.

Application note

RAVENOL Kompressorenoel VDL 150 can be used in stationary and mobile compressors with discharge temperatures up to 220°C.

RAVENOL Kompressorenoel VDL 150 can also be used for circular lubrication of engines and diesel engines where the manufacturer does not stipulate any HD motor oil.

Characteristics

  • Excellent aging resistance
  • Best wear protection
  • Excellent viscosity-temperature behavior
  • Very good cold starting properties
  • Low coking tendency

Technical data

Mobile service device for automatic transmissions also for continuously variable (CVT) (CVT) and dual clutch transmissions (DCT)
Automatic control for transmission flushing and filling
Intuitive menu navigation
Individual process and device programming possible
Multilingual menu navigation
Integrated database from RAVENOL & HaynesPro®
Suitability for the use of special cleaning agents
5 inch color touch screen
Colored control lamps for device status
Integrated thermal printer for logging vehicle and process data
Containers for detergents
Various connection adapters included in delivery
Integrated pump unit (6.6 l / min.)
Replaceable oil filter (10µ)
Supply voltage 12-15 V DC (mobile supply via vehicle battery)
Working pressure pmax = 7 bar Device dimensions: H120 / W60 / D47
Weight: 100 kg
Property Unit Data Audit
