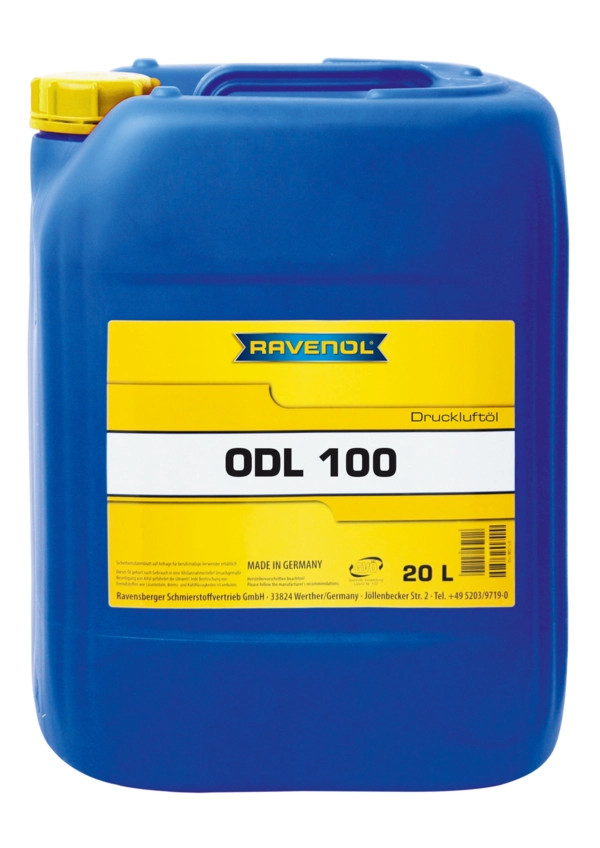

RAVENOL ODL 100 Druckluftoel 20 L
RAVENOL ODL 100 Druckluftoel 20 L
RAVENOL ODL 100 Druckluftoel 208 L
RAVENOL ODL 100 Druckluftoel 1000 L
Category: Other hydraulic oil
Item number: 1323407
Application: Industry
Oil type: Mineral
Recommendations: <p><b>RAVENOL STOU SAE 10W-30</b> has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors. </p> <p><b>RAVENOL STOU SAE 10W-30</b> is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil. </p> , A powerful dispersion and detergency<br />Protection against wear, corrosion and foam<br />High resistance to oxidation<br />Excellent extreme pressure properties<br />A high and stable viscosity index<br /> , <p><b>RAVENOL STOU SAE 5W-30</b> has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors. </p> <p><b>RAVENOL STOU SAE 5W-30</b> is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as transmission oil (including wet brakes) and as hydraulic oil. </p> , Excellent viscosity-temperature behaviour<br />Exceptional cold starting abilities<br />Excellent detergent and dispersant properties<br />High resistance to ageing<br /> , <p><b>RAVENOL STOU SAE 10W-40</b> has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors. </p> <p><b>RAVENOL STOU SAE 10W-40</b> is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil. </p> , <p><b>RAVENOL STOU SAE 15W-30</b> has a wide range of applications in engines, transmissions and hydraulic systems of many tractors and is suitable for use as motor oil for both petrol and diesel engines, transmission oil (including wet brakes and PTO transmissions) and as a hydraulic oil where this specification of product is required. Can also be used as compressor oil. </p> , Hilti intern , <p><b>RAVENOL STOU SAE 15W-40</b> has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors. </p> <p><b>RAVENOL STOU SAE 15W-40</b> is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil. </p> , A powerful dispersion and detergency<br />A high activity against wear, corrosion and foam<br />A very strong resistance to oxidation<br />Excellent extreme pressure properties<br />A high and stable viscosity index<br /> , <p><b>RAVENOL STOU SAE 20W-40</b> has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors. </p> <p><b>RAVENOL STOU SAE 20W-40</b> is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil. </p> , <p><b>RAVENOL CATOEL TO-4 SAE 10W</b> ensures maximum wear protection in various gears, such as side drives and differentials, optimized the friction coefficient in power shift transmissions, wet brakes and clutches and provides maximum service life of the units. </p> , Highest wear protection<br />High oxidation stability<br />Excellent viscosity-temperature behavior<br />Optimization of friction coefficient behavior<br />Guarantees maximum life of the units<br />

RAVENOL ODL 100 Druckluftoel is a special-compressed-air-oil for pneumatic tools of all systems.

RAVENOL ODL 100 Druckluftoel bonds condensed water, has an excellent corrosion protection, wear protection and an extraordinary pressure absorption capacity, a good adhesive power and high aging resistance. Easily conveying- and spray ability, economy consumption. No deposits caused by cleaning effects. Full power of impact.

Application note

RAVENOL ODL 100 Druckluftoel is especially suitable for pneumatic tools with sound-absorbing-case, for lubrication of rock drills, road breaker, chipping hammer and spade hammer, ram machines and other pneumatic aggregates. Application by pre-switch-lubricator according to working instructions or usable directly in the air pipe.

Please follow the manufacturer´s instructions.

Characteristics

  • a high performance level
  • a very good viscosity temperature behaviour
  • a good adherence
  • a high aging resistance
  • a reliable wear protection
  • an excellent corrosion protection
  • neutrality of sealing materials

Technical data

Property Unit Data Audit
Aussehen/Farbe gelbbraun VISUELL
Viskosität bei 100 °C mm²/s 11,7 DIN 51562-1
Viskosität bei 40 °C mm²/s 100,0 DIN 51562-1
Viskositätsindex VI 105 DIN ISO 2909
Dichte bei 20 °C kg/m³ 875,0 EN ISO 12185
Flammpunkt °C 264 DIN EN ISO 2592
FZG-test A/8.3/90 Schadenskraftstufe %wt. 12 DIN 51354/2
Pourpoint °C -24 DIN ISO 3016
Download PDF
