RAVENOL Hydraulikoel TS 32 (HLP)

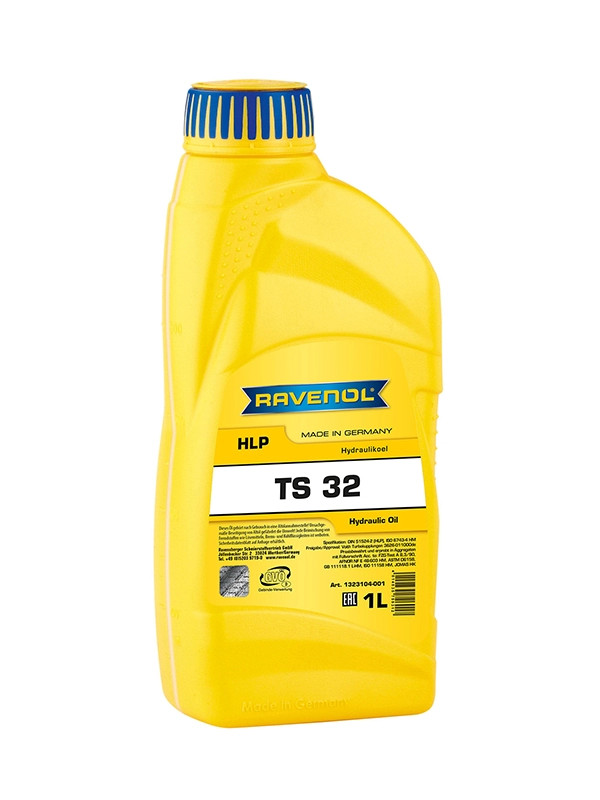

RAVENOL Hydraulikoel TS 32 (HLP) 1 L

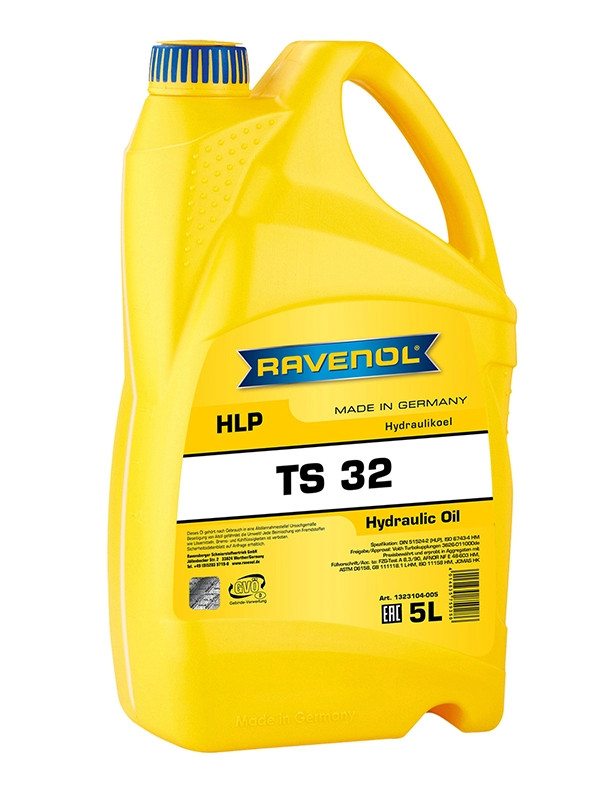

RAVENOL Hydraulikoel TS 32 (HLP) 5 L

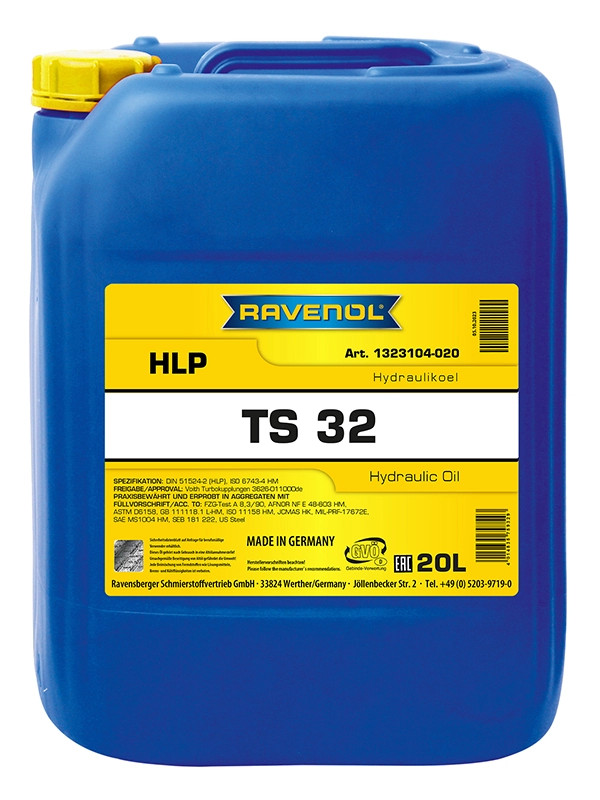

RAVENOL Hydraulikoel TS 32 (HLP) 20 L
RAVENOL Hydraulikoel TS 32 (HLP) 20 L
RAVENOL Hydraulikoel TS 32 (HLP) 60 L
RAVENOL Hydraulikoel TS 32 (HLP) 208 L
RAVENOL Hydraulikoel TS 32 (HLP) 1000 L
Category: Other hydraulic oil
Item number: 1323104
Viscosity: <p><b>RAVENOL Natur-Petroleum </b>is for use in kerosene lamps and torches. Adjust the burner that the flame burns without smoke and soot. If necessary, re-adjust and refill. Observe the operating instructions of the lamp manufacturer. Do not pour in fire. The product is combustible. Lamps filled with this liquid keep absolutely out of the reach of children. </p>
Application: Industry , Agricultural machinery
Oil type: Mineral
Specifications: DIN 51524-2 , ISO 6743-4 HM
Recommendations: AFNOR NFE 48-603 HM , ASTM D6158 , Atos intern , Bosch Rexroth RE 90220 , CETOP RP 91H HM , Danieli Hydraulics intern , Eaton Vickers I-286-S , Fives Cincinnati P-38 , Fives Cincinnati P-68 , intern FZG-Test A 8,3/90 , GB 111118.1 L-HM (conventional) , GM LH-02-1-04 , GM LS-2 , ISO 11158 HM , JCMAS HK , Eaton Vickers M-2950-S , Metso intern , MIL PRF-17672 E , Müller Weingarten intern , Parker Denison HF-0 , Parker Denison HF-1 , Parker Denison HF-2 , SAE MS1004 HM , Sauer-Danfoss 520L0463 , SEB 181.222 , US Steel 126 , US Steel 127 , US Steel 136 , VDMA 24318 , intern Vickers-Pumpentest

RAVENOL Hydraulikoel TS 32 (HLP) is optimal alloyed mineral hydraulic oil with a high performance level and a wide application area of the whole industry.

RAVENOL Hydraulikoel TS 32 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

RAVENOL Hydraulikoel TS 32 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.

Application note

RAVENOL Hydraulikoel TS 32 (HLP) is for universally use in all hydraulic systems.

RAVENOL Hydraulikoel TS 32 (HLP) is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.

RAVENOL Hydraulikoel TS 32 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.

Characteristics

  • A high performance level
  • A very good viscosity temperature behaviour
  • A high aging resistant
  • An excellent wear protection
  • A solid corrosion protection
  • Neutral towards sealing materials

Technical data

Property Unit Data Audit
Aussehen/Farbe hellgelb VISUELL
Viskosität bei 100 °C mm²/s 5,8 DIN 51562-1
Viskosität bei 40 °C mm²/s 32,1 DIN 51562-1
Viskositätsindex VI 123 DIN ISO 2909
Dichte bei 20 °C kg/m³ 848,0 EN ISO 12185
Flammpunkt °C 224 DIN EN ISO 2592
Pourpoint °C -30 DIN ISO 3016
