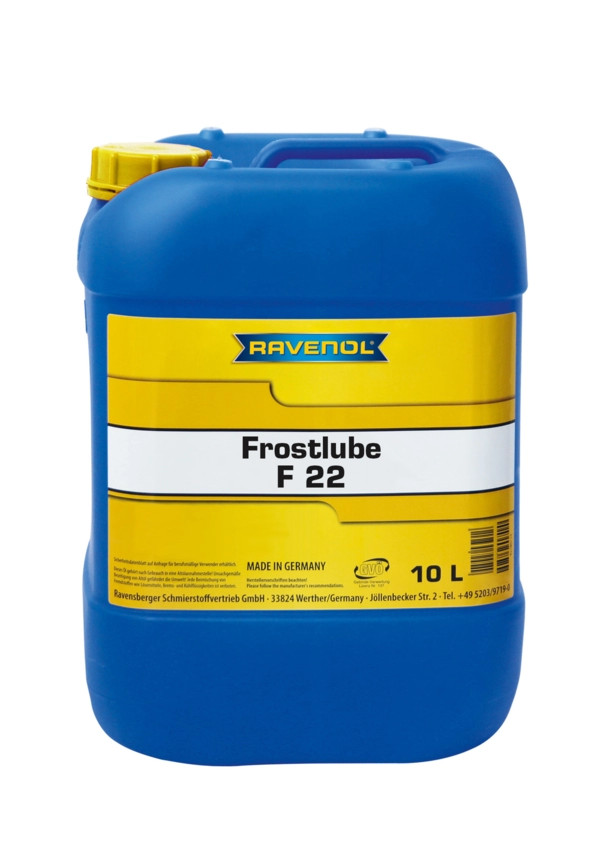

RAVENOL Frostlube F 22 10 L
RAVENOL Frostlube F 22 208 L
Category: Other hydraulic oil
Item number: 1323351
Application: Industry
Oil type: Mineral
Specifications: ISO 6743-4 HV

RAVENOL Frostlube F 22 is special hydraulic fluid designed on the basis of specially selected base oils for the low-temperature performance and high quality hydraulic additives including corrosion and oxidation inhibitors as well as additives for the reduction of wear and foaming.

RAVENOL Frostlube F 22 is a high quality, anti-wear hydraulic oil with a very high viscosity index, good shear stability and excellent low-temperature properties.

Application note

RAVENOL Frostlube F 22 is excellently suitable for application in extremely low temperatures, e.g. equipment in refrigerated warehouses or mobile facilities, which are used outdoors under extreme winter conditions.

RAVENOL Frostlube F 22 is specifically formulated so that a consistent viscosity is extensively given even in the case of extremely varying temperatures.

RAVENOL Frostlube F 22 is a shear stable, high quality hydraulic oil and therefore, suitable for application under extreme hydraulic conditions without risk for the system. If the oil temperature is permanently above 80°C, the hydraulic system should be pressurized to minimize oil loss due to evaporation.

Characteristics

  • An extremely high viscosity index so that the good lubrication properties and the protection in the eventof minimal viscosity alterations are ensured by a wide temperature range.
  • A low pour point; therefore, application at extremely low temperatures is permitted without the risk offreezing.
  • An extremely good resistance to oxidation and a very good shear stability; therefore, longer service lifeof the oil under the usually extreme application conditions.
  • Protection of the hydraulic system against corrosive influences.
  • Anti-wear effect.
  • Load bearing capability.
  • Longer service life of the oil.

Technical data

Property Unit Data Audit
Aussehen/Farbe grün VISUELL
Viskosität bei 100 °C mm²/s 7,3 DIN 51562-1
Viskosität bei 40 °C mm²/s 25,4 DIN 51562-1
Viskositätsindex VI 274 DIN ISO 2909
Dichte bei 20 °C kg/m³ 837,0 EN ISO 12185
Flammpunkt °C 156 DIN EN ISO 2592
Pourpoint °C -63 DIN ISO 3016
