Category:
Car hydraulic oil
Item number:
1181201
Application:
Car
Oil type:
Mineral
Recommendations:
<p><b>RAVENOL ATF MERCON® V </b>was especially developed for the use in automatic transmissions of FORD. It is recommended to flush with <b>RAVENOL ATF MERCON® V </b>before filling. </p>
,
Fiat 9.55550-SA1
,
Fiat F005.F98
,
Fiat/Alfa Romeo 15081616 CS SPEED für Dualogic
,
Peugeot/Citroën 9979.A4 für MCP Automated Gearbox
,
Suzuki 99000M24121-135
,
Suzuki AMT Actuator Fluid

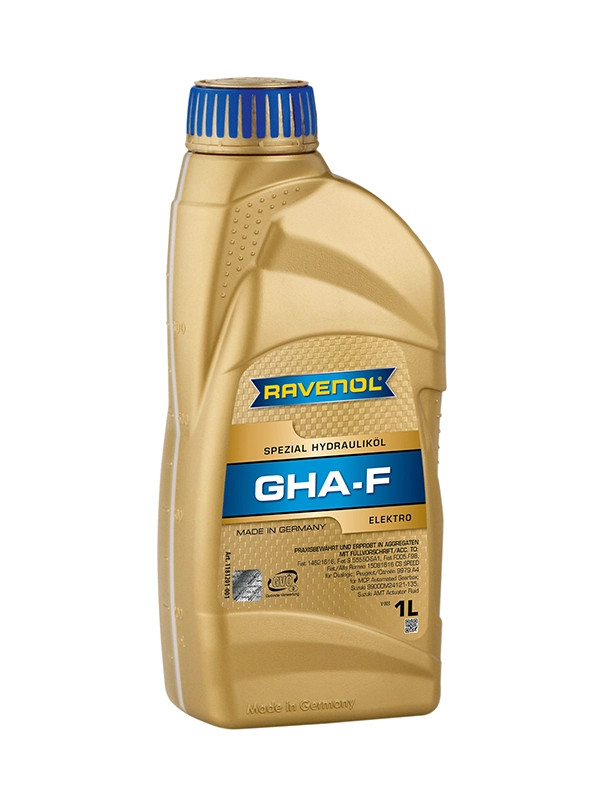

RAVENOL Gearbox Hydraulic Actuator Fluid GHA-F is a special hydraulic fluid, based on synthetic and mineral oil with non-ash forming additives.
The properties of RAVENOL Gearbox Hydraulic Actuator Fluid GHA-F are decisively determined by its special formulation. We guarantee an excellent low temperature stability.
Application note
RAVENOL Gearbox Hydraulic Actuator Fluid GHA-F is designed for a range of application from -40°C to +100°C.
RAVENOL Gearbox Hydraulic Actuator Fluid GHA-F is used in electrically controlled MCP gearboxes from Peugeot/Citroën and in Dualogic and Selespeed gearboxes from FIAT/Alfa Romeo and therefore, shows ideal performance as a special hydraulic fluid in electrohydraulic and electrically controlled gears and gearshifts.
Characteristics
- Extremely low pour point.
- Improved viscosity and friction value characteristics.
- Very good wear protection.
- An excellent thermal stability.
- Improved EP properties.
- Good foaming characteristics.
- Neutral behaviour towards sealing compounds.
- Reliable protection against corrosion.
Technical data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Aussehen/Farbe | grün | VISUELL | |
| Viskosität bei 100 °C | mm²/s | 6,6 | DIN 51562-1 |
| Viskosität bei 40 °C | mm²/s | 19,7 | DIN 51562-1 |
| Viskositätsindex VI | 333 | DIN ISO 2909 | |
| Dichte bei 20 °C | kg/m³ | 827,0 | EN ISO 12185 |
| Flammpunkt | °C | 164 | DIN EN ISO 2592 |
| Pourpoint | °C | -54 | DIN ISO 3016 |
