Category:
Hydraulic oil for agricultural vehicles and constr
Item number:
1310712
Viscosity:
NONE
Application:
Agricultural machinery
Oil type:
Synthetic
Specifications:
Universal application, multi-purpose mixed pattern for machinery<br />Excellent impact and wear-EP<br />Very good oxidation and corrosion protection even in the presence of moisture<br />Very good mechanical stability<br />Excellent water resistance<br />Long service life and thus extended lubrication intervals possible<br />Very good resistance to aging<br />Good pumpability, even at low temperatures<br />
,
DIN 51524-3
Approvals:
ZF TE-ML 03E (ZF008204)
,
ZF TE-ML 05F (ZF008204)
,
ZF TE-ML 17E (ZF008204)
,
ZF TE-ML 21F (ZF008204)
Recommendations:
Allison C4
,
Caterpillar TO-2
,
CNH 410 B
,
CNH MAT 3506
,
<p><b>RAVENOL MARINE 1630 SAE 30 TBN16 </b>is used as a lubrication oil in quickly running and so-called« medium speed » navy diesel engines, perhaps with turbo charging and when using distilled fuels with asulfur content up to 1,8 %. </p>
<p><b>RAVENOL MARINE 1630 SAE 30 TBN16 </b>can also be used for the lubrication of gear transfers inaggregates used on boats. </p>
,
CNH MS 1206
,
CNH MS 1210
,
Deutz-Allis AC Power Fluid 821 XL
,
FORD ESN-M2C 86 B
,
FORD ESN-M2C-134 D
,
<p><b>RAVENOL Motobike 4-T Ester SAE 5W-30 </b>is suitable as a high performance low friction engine oil for all motorbikes in case the specification SAE 5W-30 is requested. </p>
,
John Deere J21A
,
Massey Ferguson CMS M1135
,
Massey Ferguson CMS M1141
,
Massey Ferguson CMS M1143
,
Massey Ferguson CMS M1145
,
Renault 180596
,
SDF Group SDFG OT-1891A
,
VOLVO B6M WB 101 (BM Valmet AWB Achsen)
,
White Farm (AGCO) Q-1802
,
White Farm (AGCO) Q-182616
,
<p><b>RAVENOL Motobike 4-T Ester SAE 10W-40 </b>is suitable as a high performance low friction engine oil for all motorbikes in case the specification SAE 10W-40 JASO MA/MA2 is requested. </p>
,
ZF TE-ML 06R
,
ZF TE-ML 06S

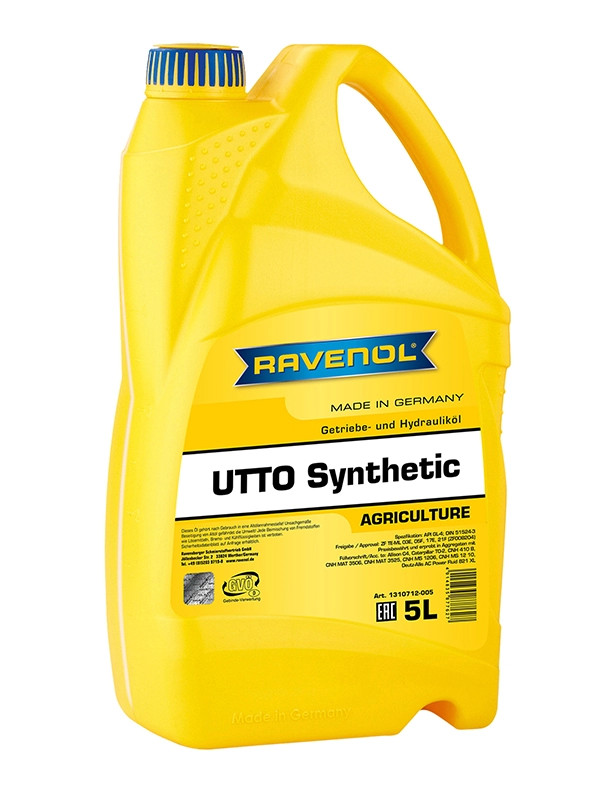

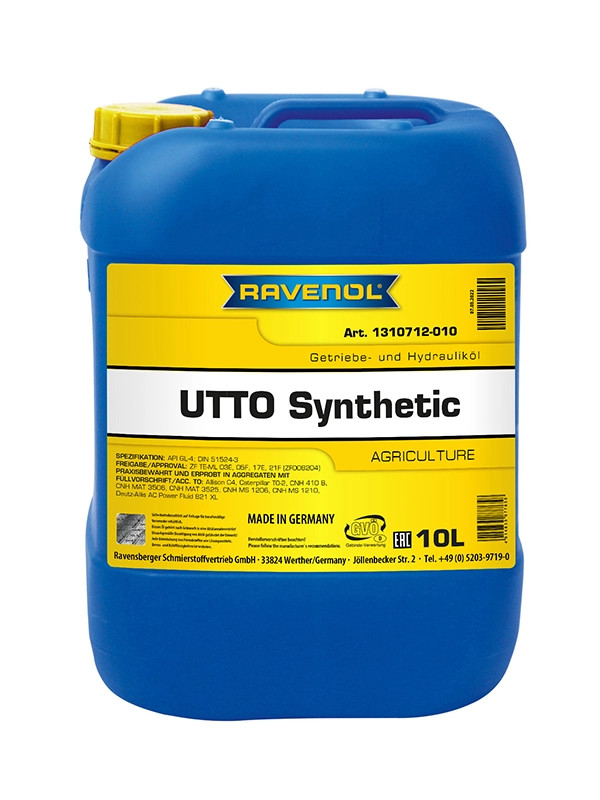

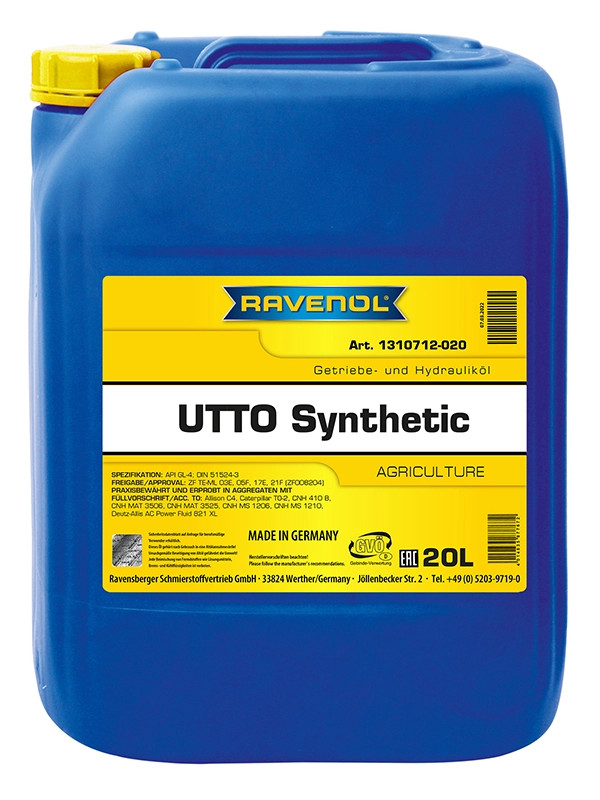

RAVENOL UTTO Synthetic is a combined transmission and hydraulic oil on the basis of solvent refined base oils. It is a special developed universal oil which can be used in combined hydraulic and transmission systems of modern tractors. High quality base oils and exclusive additives guarantee a trouble-free operation of all aggregates at any season.
Application note
RAVENOL UTTO Synthetic is a special developed universal oil for the lubrication and power transmission of combined hydraulic and transmission systems as it mostly requested for farming tractors and diggers.
RAVENOL UTTO Synthetic is suitable for wet brakes of load change couplings and minor drives.
Characteristics
- a very high stable viscosity index
- a very low pour point
- a high oxidation stability
- a very high pressure absorption capacity
- protection against corrosion and foam formation as far as possible
- a convenient coefficient of friction during running brakes in oil bath (wet brakes) of load change couplings and minor drives
- high shear stability
Technical data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Aussehen/Farbe | gelb | VISUELL | |
| Viskosität bei 100 °C | mm²/s | 12,4 | DIN 51562-1 |
| Viskosität bei 40 °C | mm²/s | 71,0 | DIN 51562-1 |
| Viskositätsindex VI | 175 | DIN ISO 2909 | |
| Dichte bei 20 °C | kg/m³ | 848,0 | EN ISO 12185 |
| Pourpoint | °C | -36 | DIN ISO 3016 |
