Category:
Hydraulic oil for agricultural vehicles and constr
Item number:
1310700
Application:
Agricultural machinery
Oil type:
Mineral
Approvals:
ZF TE-ML 03E (ZF001718)
,
ZF TE-ML 05F (ZF001718)
,
ZF TE-ML 17E (ZF001718)
,
ZF TE-ML 21F (ZF001718)
Recommendations:
Allison C4
,
a very good oxidation resistance<br />a stable viscosity index<br />excellent dispersant and detergent characteristics<br />a good neutralizing power to neutralize acid connections which occur when burning diesel fuels<br />a good cleaning power<br />a good corrosion protection<br />a good foam prevention<br />a low pourpoint<br />a good water separation behaviour<br />
,
<p><b>RAVENOL MARINE 1230 SAE 30 TBN12 </b>is used as a lubrication oil in quickly running and so-called « medium speed » navy diesel engines, perhaps with turbo charging and when using distilled fuels. </p>
,
Caterpillar TO-2
,
Deutz-Allis AC Power Fluid 821 XL
,
suitability for catalysts<br />excellent detergent and dispersant characteristics<br />very good cold start characteristics<br />a high oxidation stability<br />an excellent viscosity temperature behaviour<br />an excellent corrosion protection<br />high safety reserves<br />reduction of emissions<br />
,
FORD ESN-M2C 86 B
,
<p><b>RAVENOL MARINEOIL PETROL SAE 25W-40 </b>is used in boat engines in case the specification SAE 25W-40 is requested. </p>
,
HVLP (DIN 51524-3)
,
<p><b>RAVENOL Motobike 4-T Ester SAE 5W-30 </b>is suitable as a high performance low friction engine oil for all motorbikes in case the specification SAE 5W-30 is requested. </p>
,
John Deere J21A
,
<p><b>RAVENOL Motobike 4-T Ester SAE 5W-40 </b>is suitable as a high performance low friction engine oil for all motorbikes in case the specification SAE 5W-40 is requested. </p>
,
<p><b>RAVENOL Motobike 4-T Ester SAE 10W-50 </b>is suitable as a high performance low friction engine oil for all motorbikes in case the SAE 10W-50 is requested. </p>
,
a quick lubrication of the engine<br />a low evaporation tendency, therefore a lower oil consumption<br />safety against sludge accumulation, cokings and corrosion even under unfavourable operatingconditions<br />guarantee of the function of the hydro tappets at all temperatures<br />no oil limited deposits in combustion chambers, at the piston ring and valves<br />unchanged viscosity during the whole oil change interval, a high viscosity index<br />neutral against sealing materials<br />
,
CNH MAT 3505
,
CNH MAT 3506
,
<p><b>RAVENOL MARINE 1630 SAE 30 TBN16 </b>is used as a lubrication oil in quickly running and so-called« medium speed » navy diesel engines, perhaps with turbo charging and when using distilled fuels with asulfur content up to 1,8 %. </p>
<p><b>RAVENOL MARINE 1630 SAE 30 TBN16 </b>can also be used for the lubrication of gear transfers inaggregates used on boats. </p>
,
New Holland NH 410B
,
Renault 180596
,
SDF Group SDFG OT-1891A
,
VOLVO B6M WB 101 (BM Valmet AWB Achsen)
,
White Farm (AGCO) Q-1802
,
White Farm (AGCO) Q-182616
,
<p><b>RAVENOL Motobike 4-T Ester SAE 10W-40 </b>is suitable as a high performance low friction engine oil for all motorbikes in case the specification SAE 10W-40 JASO MA/MA2 is requested. </p>

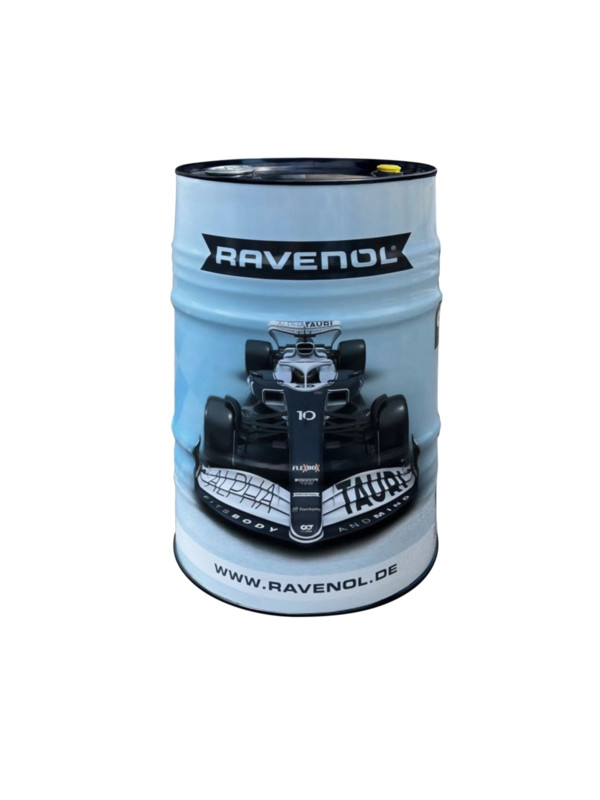

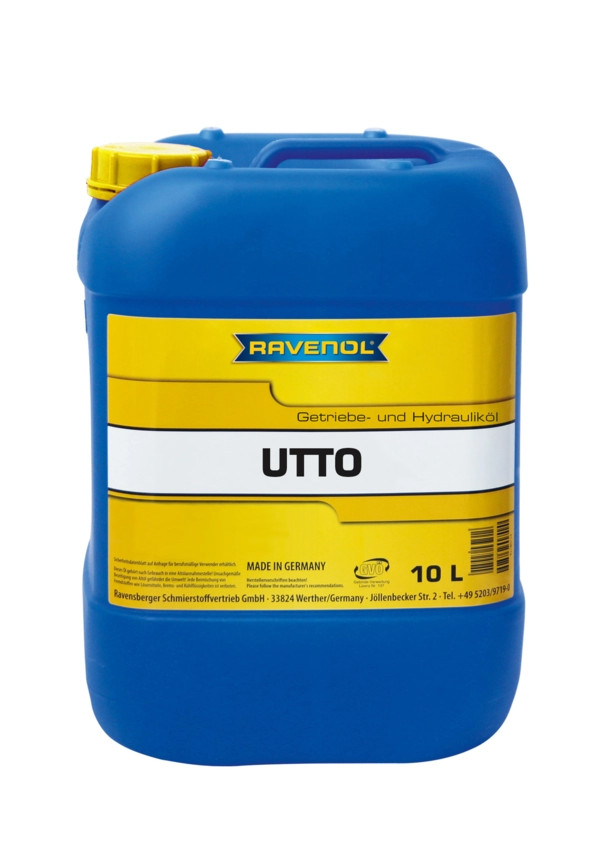

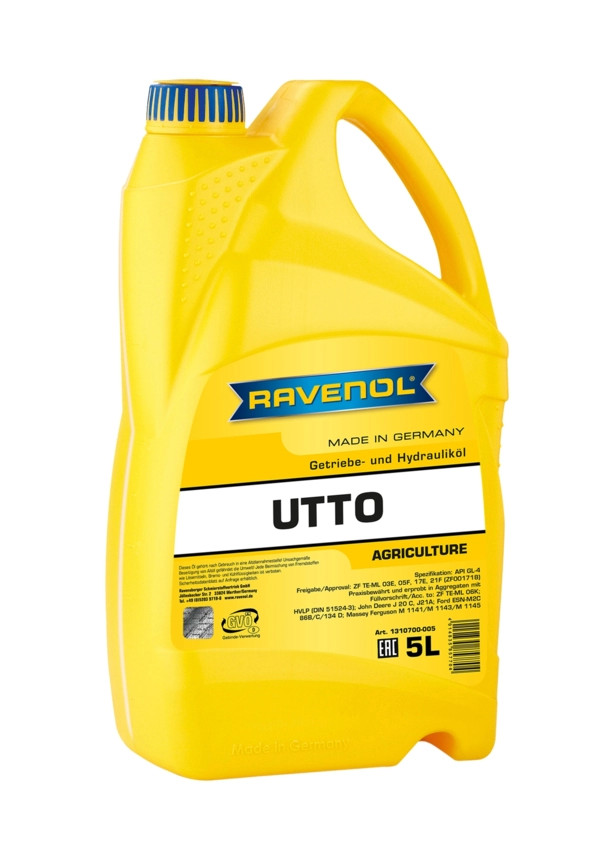

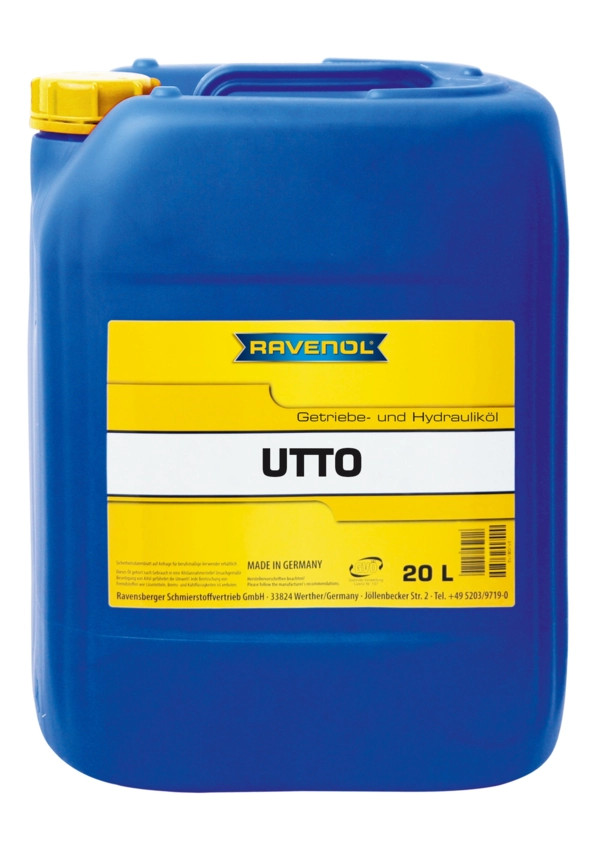

RAVENOL Getriebeöl UTTO is a combined transmission and hydraulic oil on the basis of solvent refined base oils. It is a special developed universal oil which can be used in combined hydraulic and transmission systems of modern tractors. High quality base oils and exclusive additives guarantee a trouble-free operation of all aggregates at any season.
Application note
RAVENOL Getriebeöl UTTO is a special developed universal oil for the lubrication and power transmission of combined hydraulic and transmission systems as it mostly requested for farming tractors and diggers.
RAVENOL Getriebeöl UTTO is suitable for wet brakes of load change couplings and minor drives.
Characteristics
- a very high stable viscosity index
- a very low pour point
- a high oxidation stability
- a very high pressure absorption capacity
- protection against corrosion and foam formation as far as possible
- a convenient coefficient of friction during running brakes in oil bath (wet brakes) of load changecouplings and minor drives
Technical data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Aussehen/Farbe | gelbbraun | VISUELL | |
| TBN | mg KOH/g | 9,7 | ASTM D2896 |
| Viskosität bei 100 °C | mm²/s | 9,7 | DIN 51562-1 |
| Viskosität bei 40 °C | mm²/s | 57,6 | DIN 51562-1 |
| Viskositätsindex VI | 152 | DIN ISO 2909 | |
| Dichte bei 20 °C | kg/m³ | 856,0 | EN ISO 12185 |
| Flammpunkt | °C | 230 | DIN EN ISO 2592 |
| Noack Verdampfungstest | % M/M | 10,1 | ASTM D5800 |
| Pourpoint | °C | -33 | DIN ISO 3016 |
