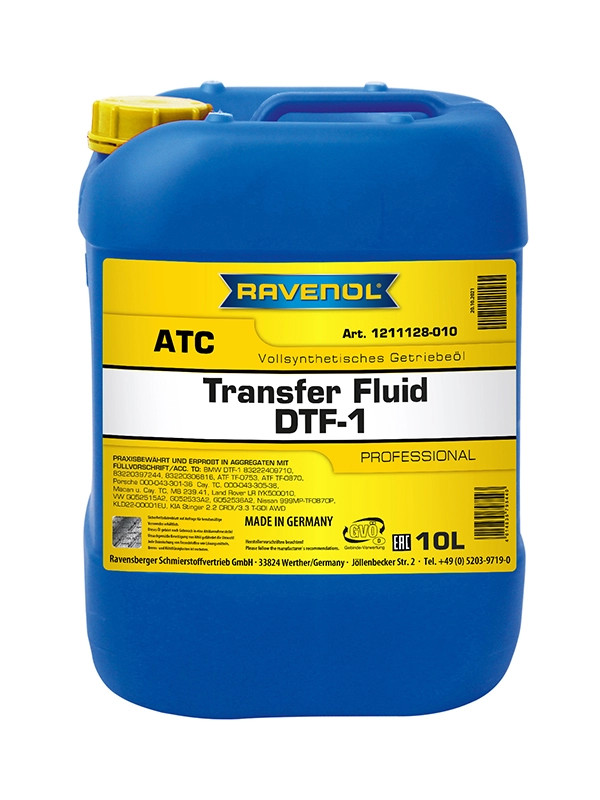

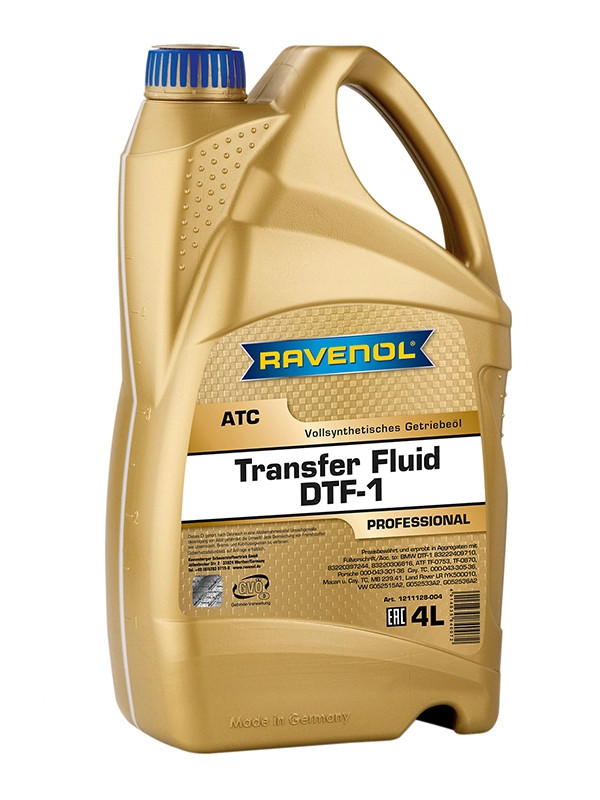

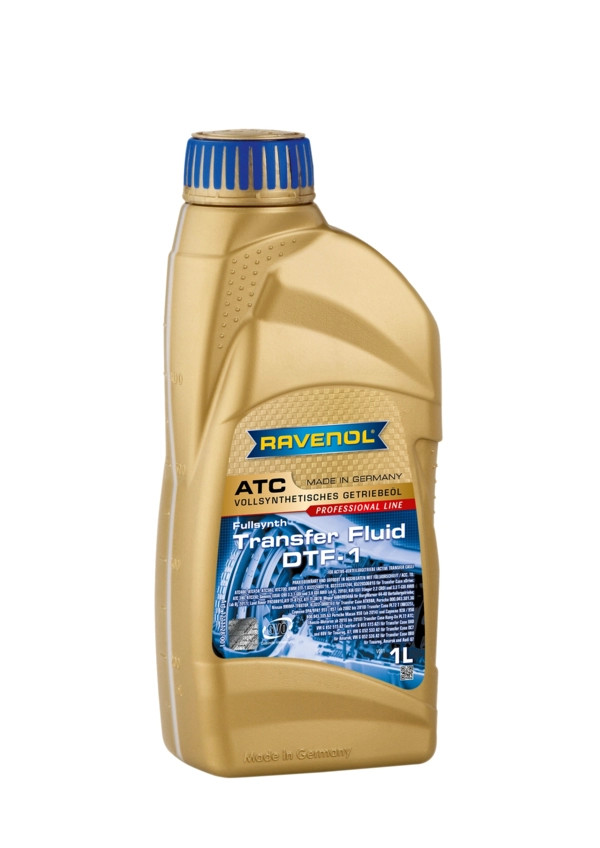

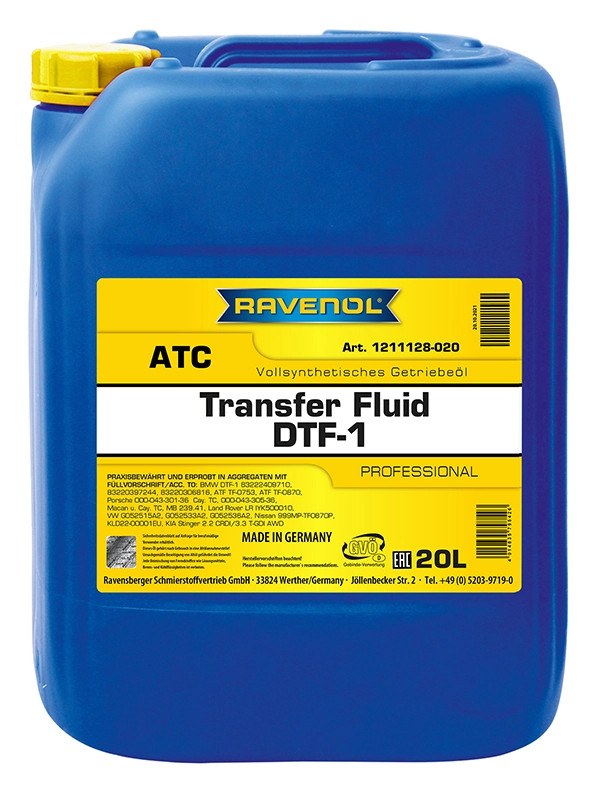

RAVENOL Transfer Fluid DTF-1 is a PAO (Poly-alpha-olefin) based, full synthetic Transfer Fluid) with a special additive and inhibition, which ensure the proper functioning of the active transfer case.
RAVENOL Transfer Fluid DTF-1 is a full synthetic gear lubricant for use in electronically controlled active transfer case.
RAVENOL Transfer Fluid DTF-1 ensures optimum power transmission.
Application note
RAVENOL Transfer Fluid DTF-1 was developed for use in active transfer case (Active Transfer Case).
RAVENOL Transfer Fluid DTF-1 provides a stable viscosity even under the highest loads.
RAVENOL Transfer Fluid DTF-1is tried and tested for aggregates specifying:
Land Rover IYK500010, ATF TF-0753, ATF TF-0870;
MB 239.41 Torque-on-Demand (TOD) Transfer case in Type 167 GLE, Type 463 G-Class, Type 470 X-Class, Type 471 with engine OM642;
Porsche 000.043.301.36 Cayenne 9PA/9PA1 955 / 957 (from 2002 to 2010) Transfer Case PL72 ATC (NV325), 000.043.305.63 Porsche Macan 95B (from 2014) and Cayenne 92A / 958 (Petrol engines from 2010 to 2018) Transfer Case Hang-On PL72 ATC;
VW G052 515 A2 (formerly: G055 515 A2) for Transfer Case 0AD and 0BV for Touareg, Q7; VW G052 533 A2 for Transfer Case 0C7 for Amarok;VW G052 536 A2 for Transfer Case 0BU for Touareg, Amarok and Audi Q7
Characteristics
- Very good lubricating ability even at very low temperatures in winter
- A high, stable viscosity index
- Very good oxidation stability
- Protection against wear, corrosion and foam formation
- Good balanced coefficient of friction
- Neutral towards sealing materials
- Neutral behavior by inhibition compared with non-ferrous metals
Technical data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Aussehen/Farbe | gelb | VISUELL | |
| Dichte bei 20 °C | kg/m³ | 831,0 | EN ISO 12185 |
| Pourpoint | °C | -63 | DIN ISO 3016 |
