RAVENOL Transfer Fluid BW 44

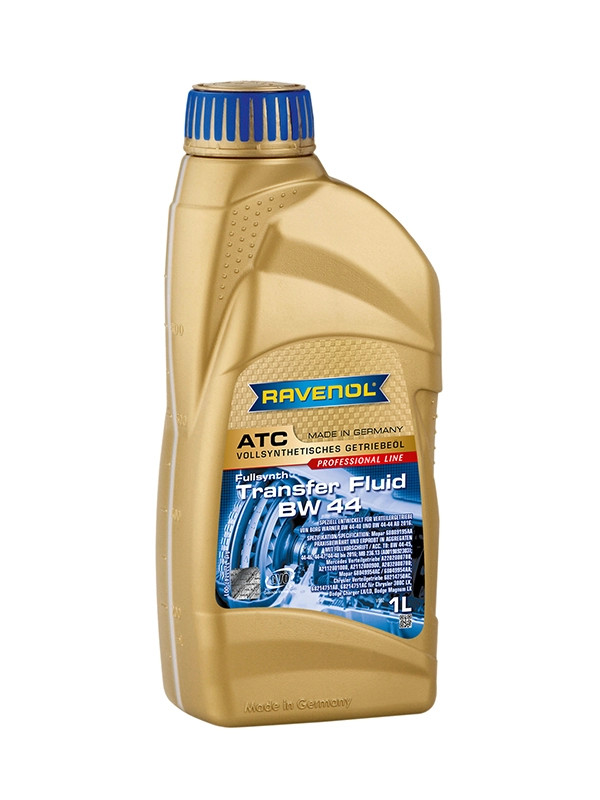

RAVENOL Transfer Fluid BW 44 1 L
Category: Gear oil for manual transmissions and drive axis
Item number: 1211147
Oil type: Fully synthetic
Specifications: Mopar 68089195AA
Recommendations: BorgWarner 44-40 , BorgWarner 44-44 , BorgWarner 44-45 bis 2016 , BorgWarner 44-46 , BorgWarner 44-47 , BorgWarner 44-48 , Chrysler 300C LX , Chrysler Verteilgetriebe 68214750AC , Chrysler Verteilgetriebe 68214751AB , Chrysler Verteilgetriebe 68214751AC für 300C LX , MB 236.13 (A 001 989 23 03) , Mercedes A 001 989 22 03 , Mercedes Verteilgetriebe A2032800700 , Mercedes Verteilgetriebe A2112800900 , Mercedes Verteilgetriebe A2112801000 , Mercedes Verteilgetriebe A2202800700 , Mopar 68049954AC / 68049954AA

RAVENOL Transfer Fluid BW 44 is a PAO (Poly-alpha-olefin) based, full synthetic transfer fluid with a special additive and inhibition, which ensure the proper functioning of the active transfer case.

RAVENOL Transfer Fluid BW 44 is a full synthetic gear lubricant for use in electronically controlled active transfer case.

RAVENOL Transfer Fluid BW 44 ensures optimum power transmission.

Application note

RAVENOL Transfer Fluid BW 44 was developed for use in Borg-Warner transmission systems BW 44-40 and BW 44-44 from 2016.

RAVENOL Transfer Fluid BW 44 provides a stable viscosity even under the highest loads. It is particularly suitable when a specification according to MB 236.13 is required for Mercedes A001 989 23 03; Mercedes transfer case A2202800700, A2112801000, A2112800900, A2032800700, A2112801000, A2112800900, A2032800700 for 4Matik S-Klasse W220, E-Klasse W211, C-Klasse W203. Also suitable for Chrysler transfer case 68214750AC, 68214751AB, 68214751AC for Chrysler 300C LX, Dodge Charger LX/LD, Dodge Magnum LX.

Characteristics

  • Very good lubricating ability even at very low temperatures in winter
  • A high, stable viscosity index
  • Very good oxidation stability
  • Protection against wear, corrosion and foam formation
  • Good balanced coefficient of friction
  • Neutral towards sealing materials
  • Neutral behavior by inhibition compared with non-ferrous metals

Technical data

Property Unit Data Audit
Aussehen/Farbe gelb DIN 51757
Seq. I bei 24 °C ml/ml 0/0 ASTM D892
Seq. II bei 93,5 °C ml/ml 0/0 ASTM D892
Seq. III bei 24 °C nach 93,5 °C ml/ml 0/0 ASTM D892
Viskosität bei 100 °C mm²/s 7,2 DIN 51562-1
Viskosität bei 40 °C mm²/s 37,2 DIN 51562-1
Viskositätsindex VI 162 DIN ISO 2909
VKA Vier Kugel Test (Verschleiß) mm 0,34 DIN EN ISO 20623
VKA Vier Kugel-Test (Hochdruck) N 2200 / 2400 DIN EN ISO 20623
KRL KV 40 °C mm²/s 35,84 DIN EN ISO 20844
KRL KV 100 °C mm²/s 6,619 DIN EN ISO 20844
Brookfield Viskosität bei -40 °C mPa*s 7900 ASTM D2983
Cu-Korrosion bei 150 °C 1a ASTM D130
Dichte bei 20 °C kg/m³ 846,0 EN ISO 12185
Flammpunkt °C 240 DIN EN ISO 2592
Noack Verdampfungstest % M/M 6,9 ASTM D5800
Pourpoint °C -66 DIN ISO 3016
