RAVENOL AWD-H Fluid

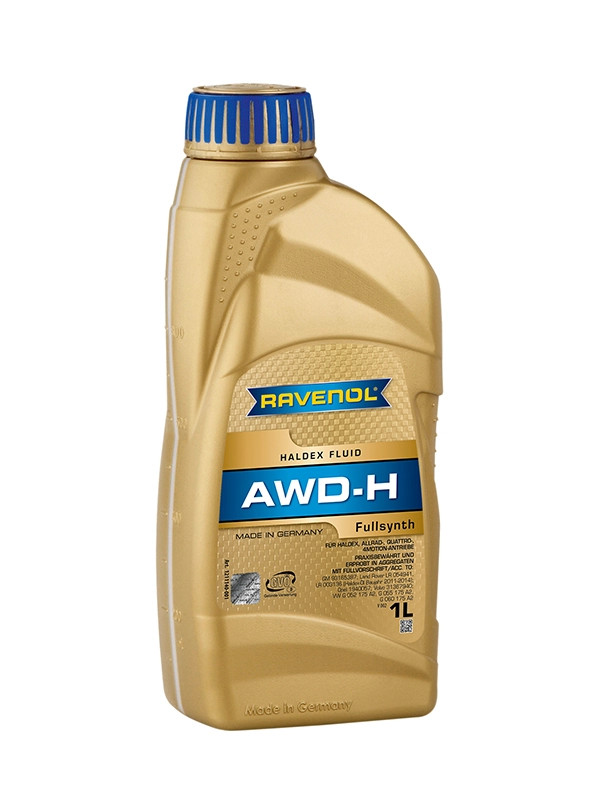

RAVENOL AWD-H Fluid 1 L

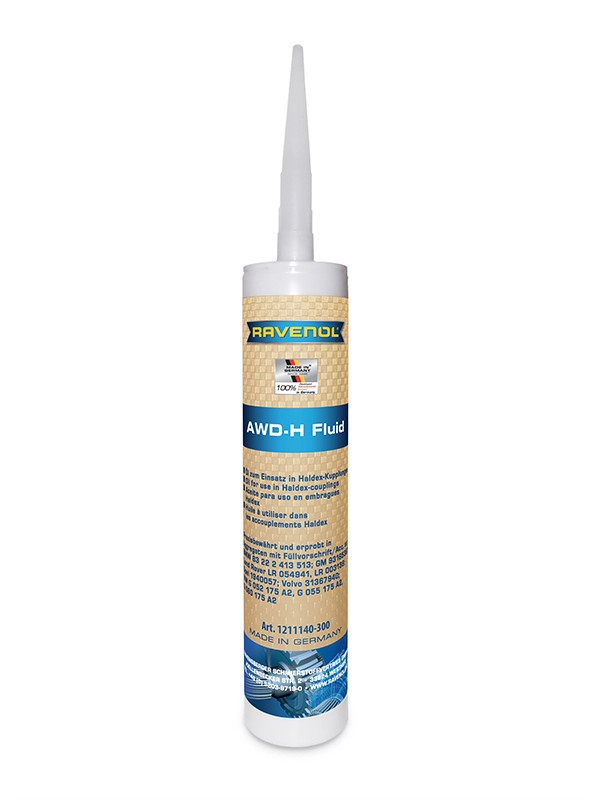

RAVENOL AWD-H Fluid 300 L
Category: Gear oil for manual transmissions and drive axis
Item number: 1211140
Application: Car
Oil type: Fully synthetic
Recommendations: BMW 83222413513 , GM 93165387 , Land Rover LR 003136 (Haldex-Öl Baujahr 2011-2014) , Land Rover LR 054941 (Haldex-Öl Baujahr 2011-2014) , Opel 1940057 , VOLVO 31367940 , VW G 052 175 A2 , VW G 055 175 A2 , VW G 060 175 A2

RAVENOL AWD-H FLUID is a high-quality formula of high-performance oils with special additives and inhibitors.

RAVENOL AWD-H FLUID is a special high-performance transmission oil for Haldex's Allrad, Quattro and 4motion powertrains.How the Haldex coupling operates: The axle closest to the engine is constantly powered. All-wheel drive powertrains with a Haldex coupling automatically direct engine power to the other axle where required, without any intervention from the driver. Depending on the electronically-controlled blocking effect of the Haldex coupling, a variable proportion of the engine power is transferred to this axle as required.

RAVENOL AWD-H FLUID supports this power transfer process with its outstanding qualities.

Application note

RAVENOL AWD-H Fluid is suitable for use with all-wheel drive powertrains with Haldex couplings in AUDI, VOLKSWAGEN, SEAT, SKODA, OPEL, LANDROVER and VOLVO vehicles.

RAVENOL AWD-H Fluid should be changed every 60.000 km in order to avoid damage to the powertrain.

RAVENOL recommendation: When changing the oil, always change the oil filter of the Haldex coupling and clean the pre-filter of the oil pump or replace it at the same time. This prevents damage to the Haldex caused by deposits or clogging of the filters.

Characteristics

  • An excellent flow behaviour at low temperatures
  • High, stable viscosity index
  • Very good oxidation stability
  • Reliable protection against wear, corrosion and foaming
  • Excellent coefficient of friction constancy
  • High thermal and oxidative stability
  • Excellent cooling ability
  • Improved shear stability

Technical data

Property Unit Data Audit
Aussehen/Farbe hellgelb VISUELL
Seq. I bei 24 °C ml/ml 0/0 ASTM D892
Seq. II bei 93,5 °C ml/ml 0/0 ASTM D892
Seq. III bei 24 °C nach 93,5 °C ml/ml 0/0 ASTM D892
Viskosität bei 100 °C mm²/s 5,4 DIN 51562-1
Viskosität bei 40 °C mm²/s 24,5 DIN 51562-1
Viskositätsindex VI 166 DIN ISO 2909
VKA Vier Kugel Test (Verschleiß) mm 0,58 DIN 51350-3
VKA Vier Kugel-Test (Hochdruck) N 2000 / 2200 DIN 51350-3
Farbzahl 1,0 DIN ISO 2049
Brookfield Viskosität bei -40 °C mPa*s 6060 ASTM D5481
Cu-Korrosion bei 150 °C 1a ASTM D130
Dichte bei 20 °C kg/m³ 855,0 EN ISO 12185
Flammpunkt 192 DIN EN ISO 2592
Pourpoint °C -63 DIN ISO 3016
