RAVENOL ATF MERCON® V

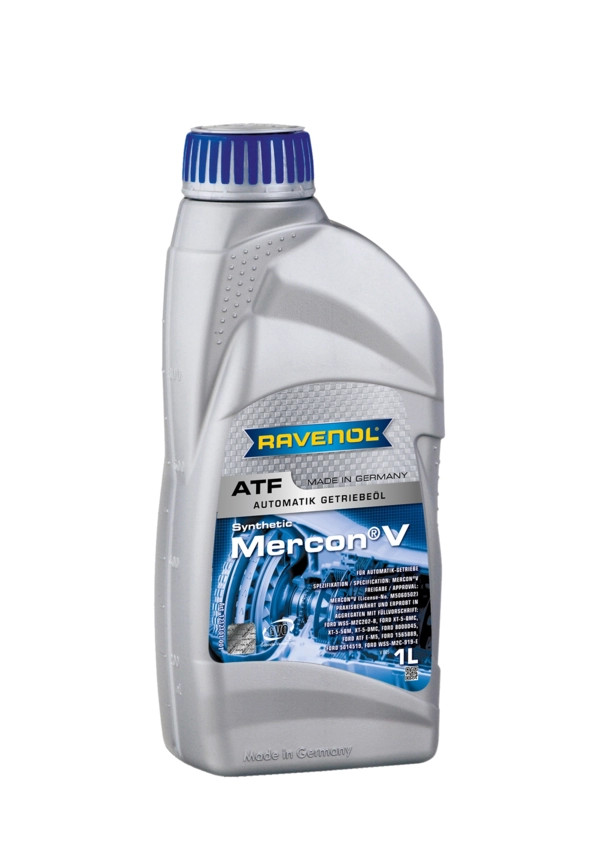

RAVENOL ATF MERCON® V 1 L

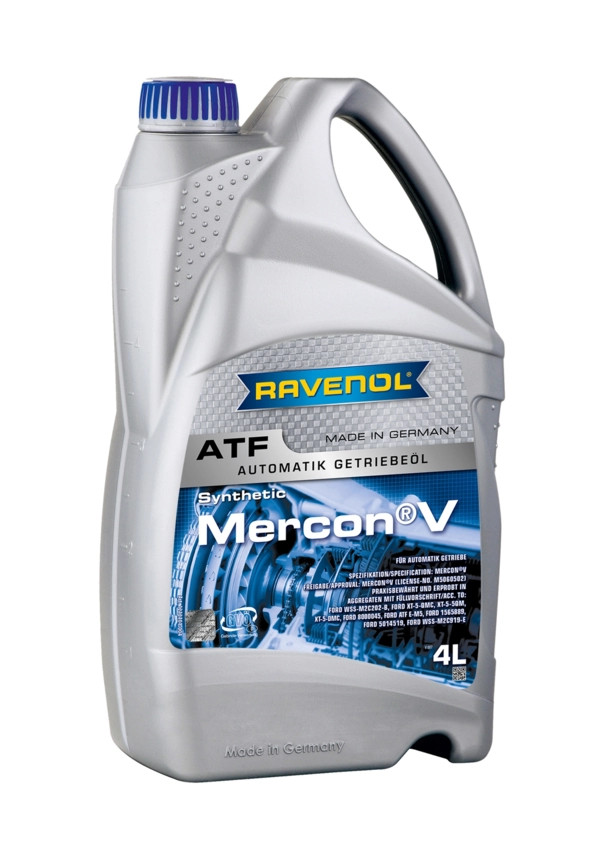

RAVENOL ATF MERCON® V 4 L

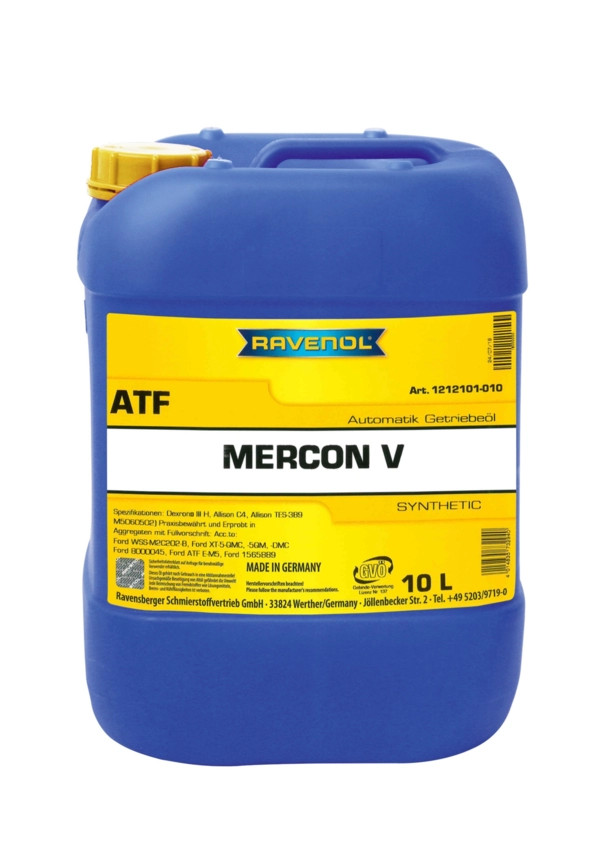

RAVENOL ATF MERCON® V 10 L
RAVENOL ATF MERCON® V 20 L

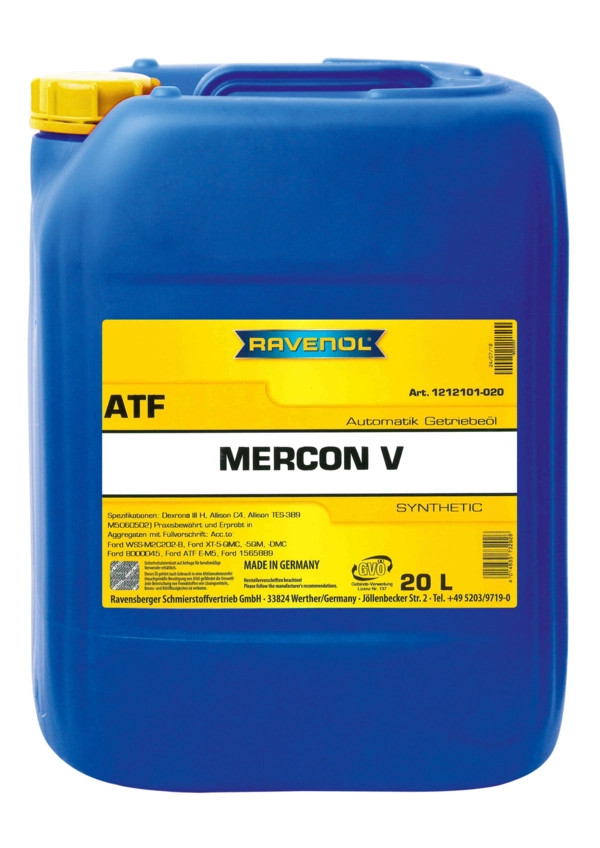

RAVENOL ATF MERCON® V 20 L
RAVENOL ATF MERCON® V 60 L

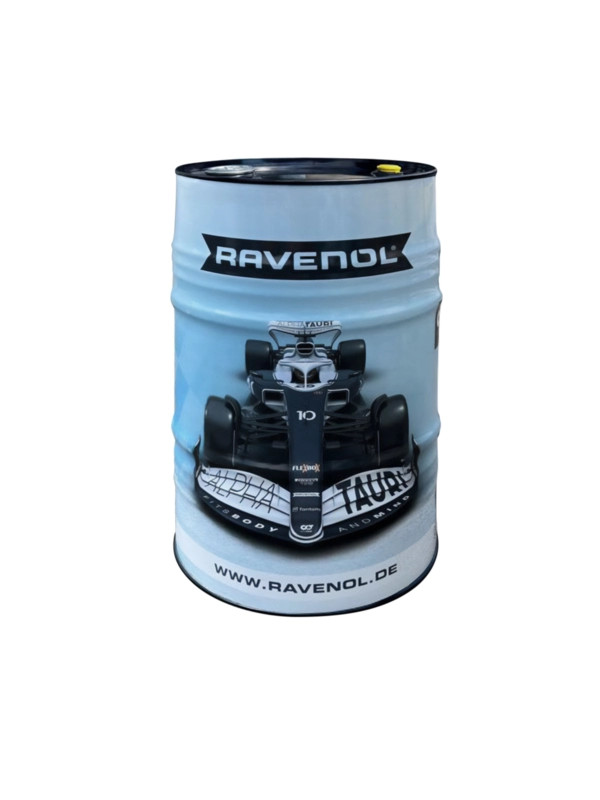

RAVENOL ATF MERCON® V 60 L
RAVENOL ATF MERCON® V 208 L

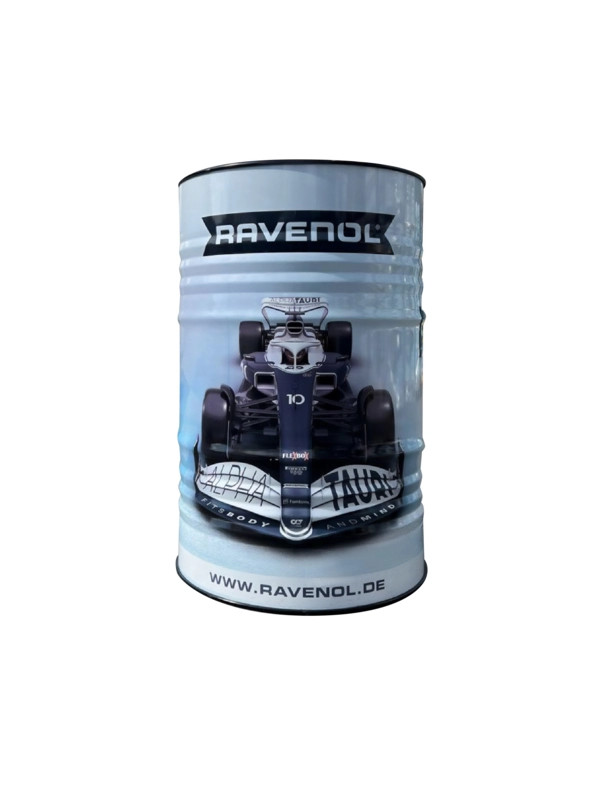

RAVENOL ATF MERCON® V 208 L
RAVENOL ATF MERCON® V 1000 L
Category: Gear oil for automatic transmissions
Item number: 1212101
Application: Car
Oil type: Synthetic
Specifications: MERCON® V
Approvals: MERCON® V (Lizenznummer M5060502)
Recommendations: FORD 8000045 , FORD ATF E-M5 , FORD WSS-M2C202-B , FORD WSS-M2C919-E , FORD XT-5-QMC , FORD 1565889 , FORD 5014519 , FORD XT-5-5QM , FORD XT-5-DMC

RAVENOL ATF MERCON® V is a synthetic ATF (Automatic Transmission Fluid), designed on the basis of high quality hydrocrack oils with a special additive and inhibition, which ensure a perfect function of the automatic transmission.

RAVENOL ATF MERCON® V guarantees a maximum of corrosion protection during any operating condition.

RAVENOL ATF MERCON® V is a ATF (Automatic Transmission Fluid ATF for automatic transmissions of FORD.

Application note

RAVENOL ATF MERCON® V was especially developed for the use in automatic transmissions of FORD. It is recommended to flush with RAVENOL ATF MERCON® V before filling.

Characteristics

  • a very good lubricating ability even at low temperatures in winter
  • a high, stable viscosity index
  • a very low pour point
  • a very good oxidation stability
  • protection against wear, corrosion and foam formation
  • good balanced coefficient of friction
  • a neutral behaviour against sealing materials
  • a neutral behaviour because of inhibition against non ferrous metals

Technical data

Property Unit Data Audit
Aussehen/Farbe rot VISUELL
Viskosität bei 100 °C mm²/s 7,2 DIN 51562-1
Viskosität bei 40 °C mm²/s 34,8 DIN 51562-1
Viskositätsindex VI 178 DIN ISO 2909
Brookfield Viskosität bei -40 °C mPa*s 15.800 ASTM D2983
Dichte bei 20 °C kg/m³ 847,0 EN ISO 12185
Flammpunkt °C 210 DIN EN ISO 2592
Pourpoint °C -48 DIN ISO 3016
