RAVENOL ATF Fluid Type F

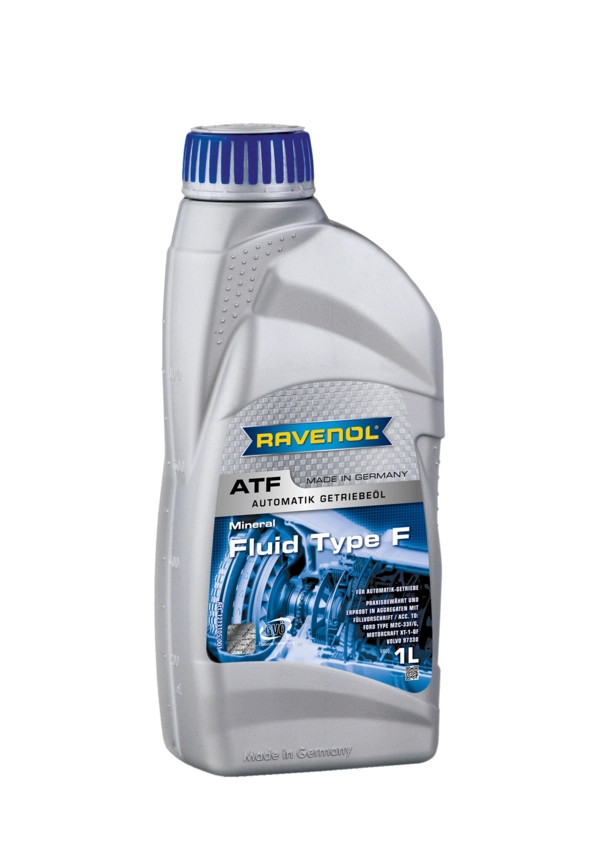

RAVENOL ATF Fluid Type F 1 L
RAVENOL ATF Fluid Type F 4 L

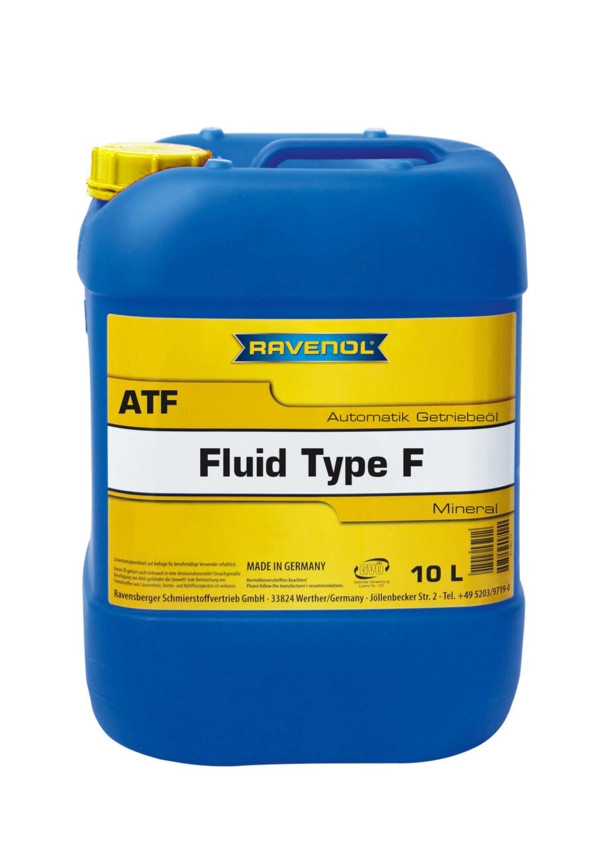

RAVENOL ATF Fluid Type F 10 L

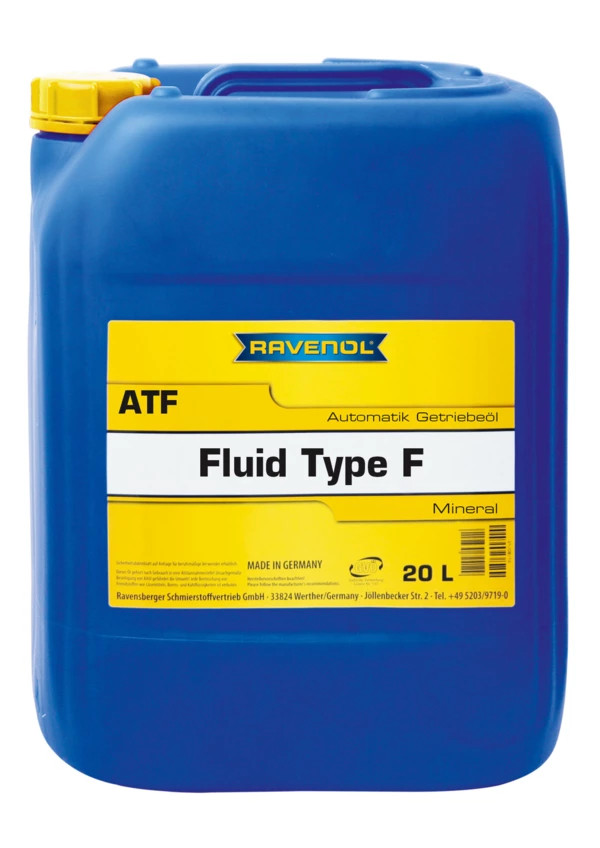

RAVENOL ATF Fluid Type F 20 L
RAVENOL ATF Fluid Type F 20 L

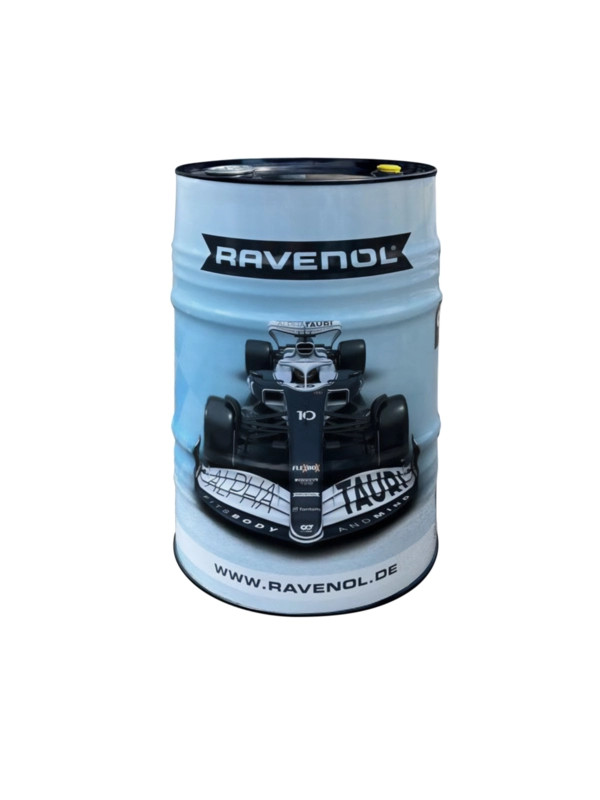

RAVENOL ATF Fluid Type F 60 L
RAVENOL ATF Fluid Type F 60 L
RAVENOL ATF Fluid Type F 208 L
RAVENOL ATF Fluid Type F 1000 L
Category: Gear oil for automatic transmissions
Item number: 1213105
Application: Classic cars , Car
Oil type: Mineral
Recommendations: Ford Motorcraft XT-1-QF , <p><b>RAVENOL Summer Screen Wash 1:100 </b>is mixed with clean water at a ratio of up to 1:100, depending on the degree of soiling and dilution, then added to the windshield washer system. </p> <p>Dosage example: 50ml to 5L water </p> <p></p> <p><b>RAVENOL Summer Screen Wash 1:100 </b>can also be used in higher concentrations for heavily soiled windscreens and for basic windscreen cleaning. The cleaner is clearly soluble in water in any ratio. </p> <p></p> <p>Note: </p> <p> </p> <p>RAVENOL Summer Screen Wash 1:100 is stored in a cool and dry place, protect from sunlight and heat. Avoid contact with eyes and skin. Keep out of the reach of children. Wash hands thoroughly after use. </p> , optimal cleaning performance<br />paint compatibility<br />hard-water stability<br />fan nozzle suitability<br /> , VOLVO 97330

RAVENOL ATF Fluid Type F is a universal ATF (automatic transmission fluid) for use as specialty transmission oil for Ford, BorgWarner and Volvo.

RAVENOL ATF Fluid Type F is designed based on refined base oils with a special additive treatment and inhibition ensuring trouble-free function.

Application note

RAVENOL ATF Fluid Type F is suitable for use as speciality transmission oil for Ford, Borg Wagner and Volvo.

Use RAVENOL ATF Fluid Type F according to aggregate manufacturer operating instructions in: Automatic transmissions, fluid turbo coupling, servo clutches and other hydrostatic and hydrodynamic systems.

Characteristics

  • Universal use, therefore minimising the risk of confusion and making stock-keeping easy.
  • Good lubricating ability even in low temperatures during winter.
  • Stable lubricating film under extreme stress in midsummer resulting in comparatively low wear throughout the change interval.
  • Excellent viscosity-temperature properties.
  • High thermal resilience.
  • Non-foaming even in extreme conditions.
  • Reliable protection against wear, sludge, corrosion and adhesion.
  • FZG test: Reaches failure load stage 12 before and after shearing.

Technical data

Property Unit Data Audit
Aussehen/Farbe rot VISUELL
Viskosität bei 100 °C mm²/s 7,3 DIN 51562-1
Viskosität bei 40 °C mm²/s 34,3 DIN 51562-1
Viskositätsindex VI 185 DIN ISO 2909
Dichte bei 20 °C kg/m³ 848,0 EN ISO 12185
Flammpunkt °C 210 DIN EN ISO 2592
Pourpoint °C -45 DIN ISO 3016
