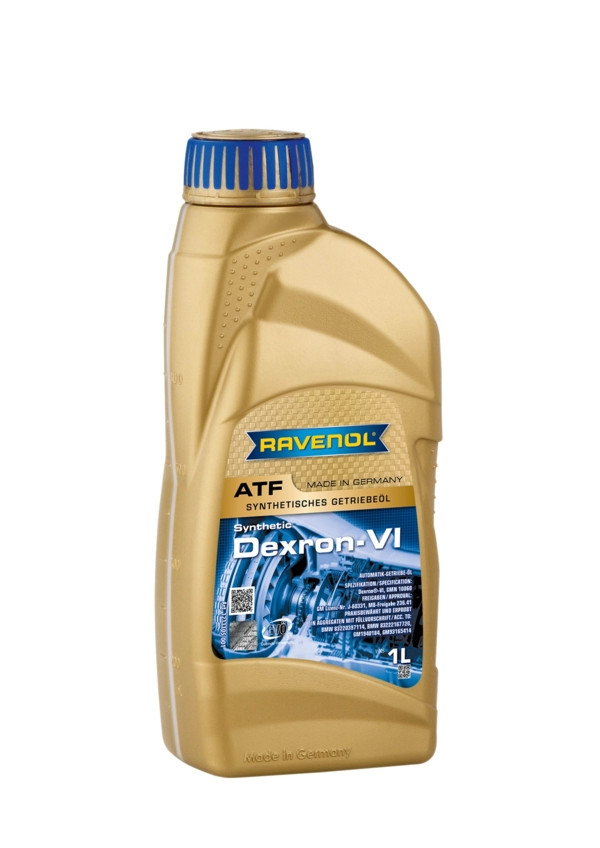

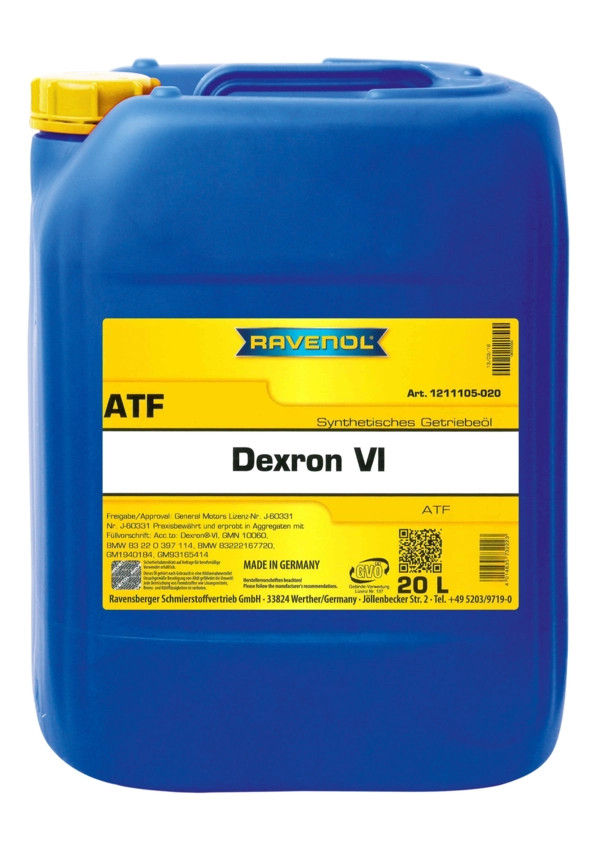

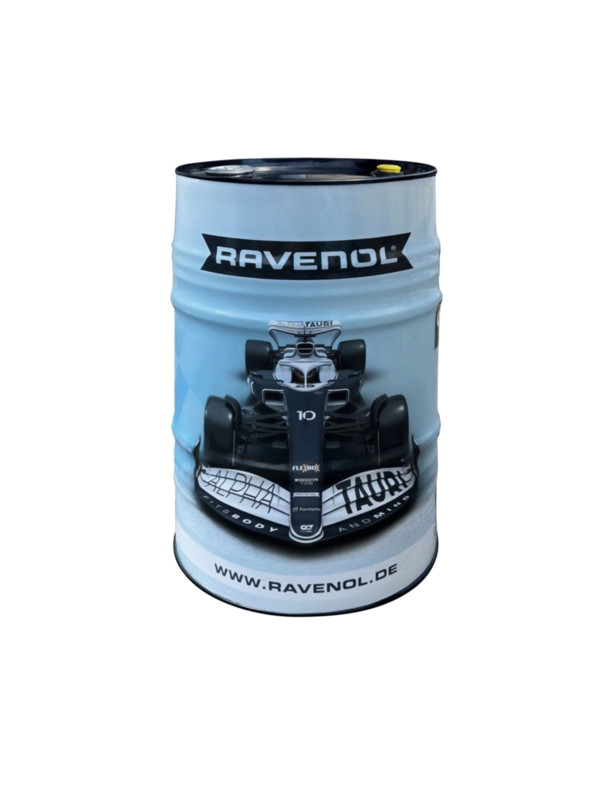

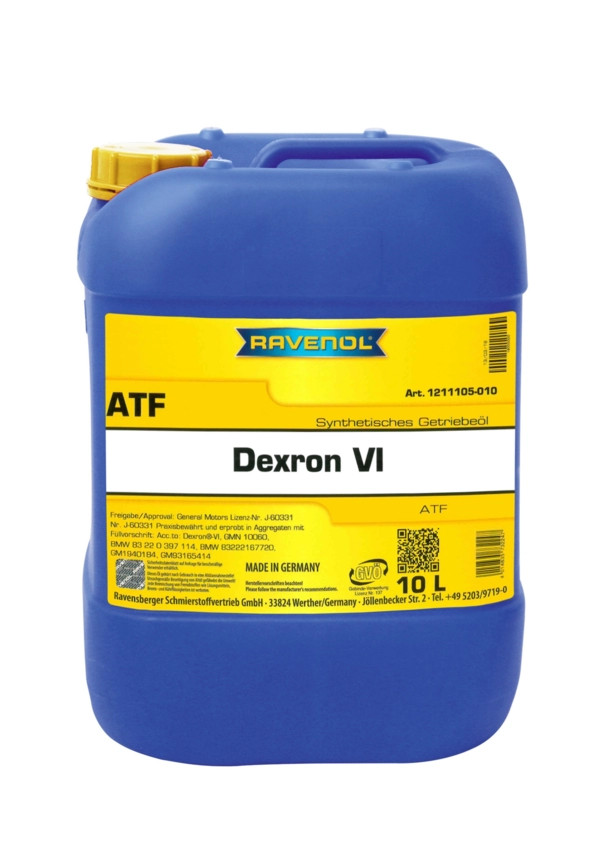

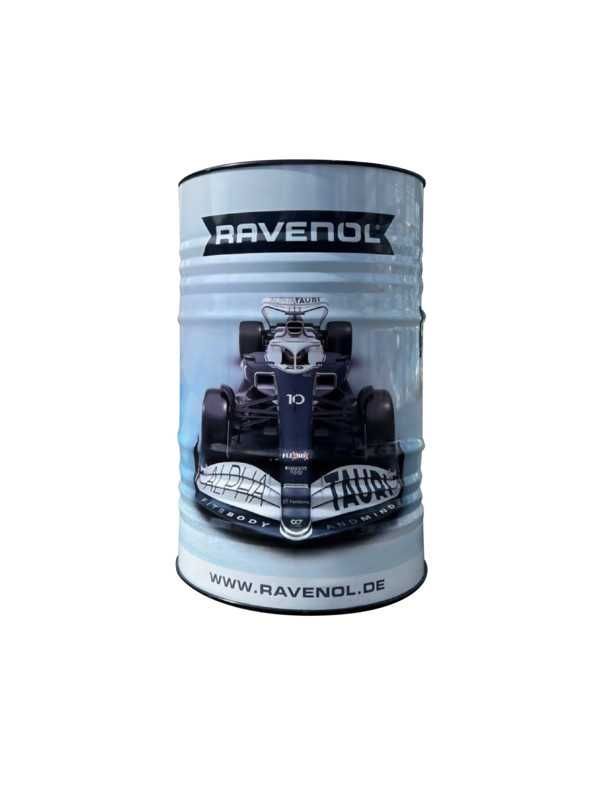

RAVENOL ATF DEXRON VI is an automatic transmission oil ATF on the basis of the latest technology of the HC/HT hydrocrack oils which is approved by General Motors for the use in vehicles with automatic transmissions. Because of the special formulation the durability is twice the time as a comparable ATF oil.
RAVENOL ATF DEXRON VI fulfils the transmission oil specifications of General Motors for all vehicles with hydramatic – automatic transmissions from 2006. Dexron®-VI is a registered brand name of General Motors Corporation.
Application note
RAVENOL ATF DEXRON VI is recommended for all GM vehicles with hydramatic – automatic transmissions from 2006.
RAVENOL ATF DEXRON VI is completely downward compatible with DEXRON III (H)-, III- and IIE-applications. Follow the recommendations of the instruction manual of your vehicle.
Characteristics
- phenomenal resistance of lubricant failure under hard operating conditions
- a longer oil durability, extension of the durability of the transmission, offers longer changing intervals
- phenomenal resistance of oil sludge and deposit accumulation
- much better oxidation resistance and thermic stability than DEXRON III (H) ATF
- an excellent corrosion protection, a much better foaming resistance for a smooth switching operation as well
- as a lower corrosion of the bearings, sleeves and gear wheels
- an excellent flow behaviour at low temperatures
- a constant switching operation performance, optimised friction characteristics
- prevention of coupling grinding regarding modulation rotary conversion
- a longer durability of oil and coupling, offers a smooth switching operation at low temperatures
- much better fuel economy and torque transfer than DEXRON III (H) ATF
- an improved shear stability
Technical data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Aussehen/Farbe | rot | VISUELL | |
| Sulfatasche | %wt. | 0,02 | DIN 51575 |
| TBN | mg KOH/g | 2,0 | ASTM D2896 |
| Viskosität bei 100 °C | mm²/s | 6,0 | DIN 51562-1 |
| Viskosität bei 40 °C | mm²/s | 29,1 | DIN 51562-1 |
| Viskositätsindex VI | 158 | DIN ISO 2909 | |
| Dichte bei 20 °C | kg/m³ | 838,0 | EN ISO 12185 |
| Flammpunkt | °C | 218 | DIN EN ISO 2592 |
| Pourpoint | °C | -54 | DIN ISO 3016 |
