RAVENOL ATF DEXRON III H

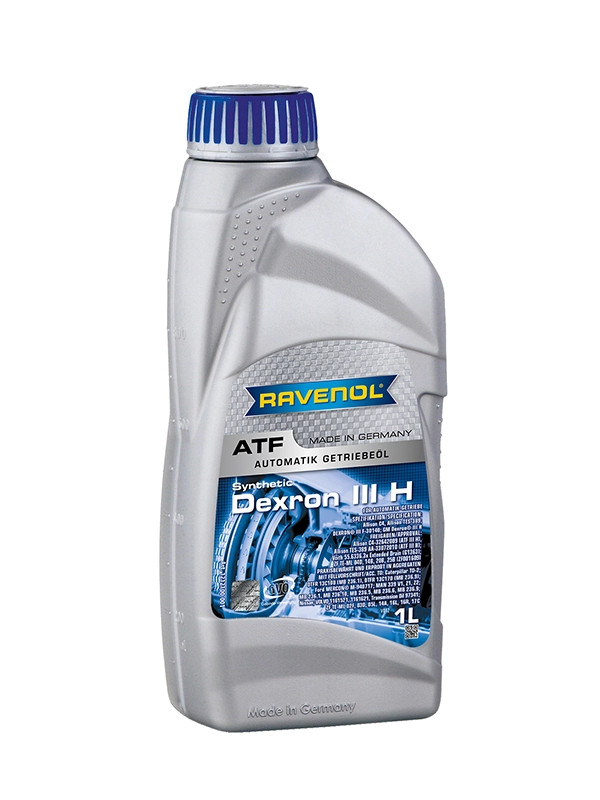

RAVENOL ATF DEXRON III H 1 L

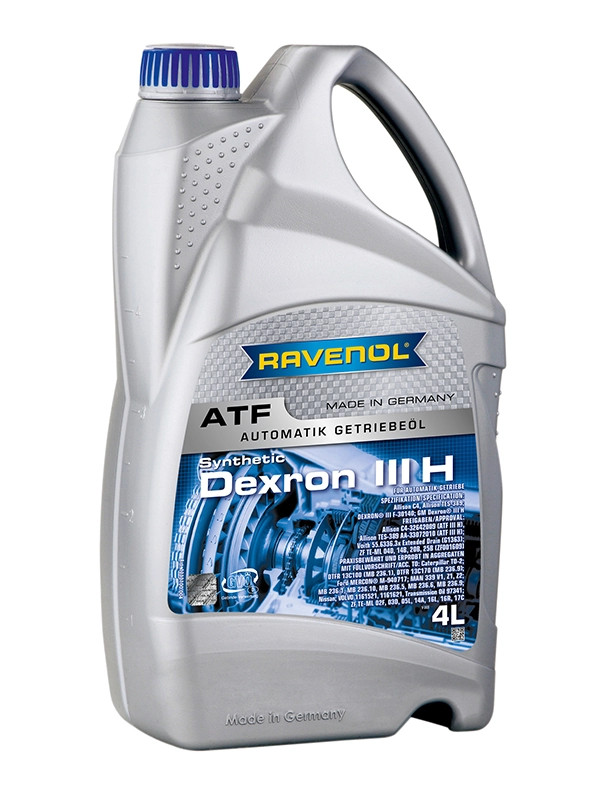

RAVENOL ATF DEXRON III H 4 L

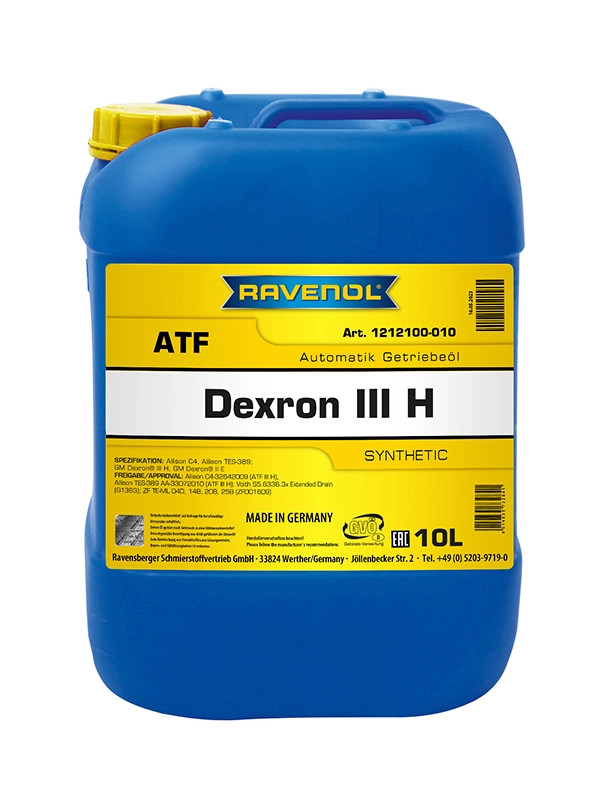

RAVENOL ATF DEXRON III H 10 L

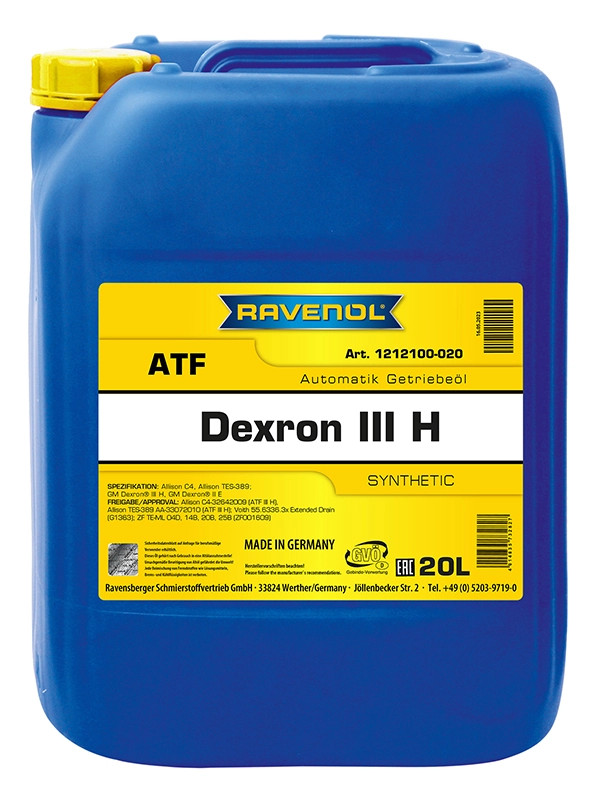

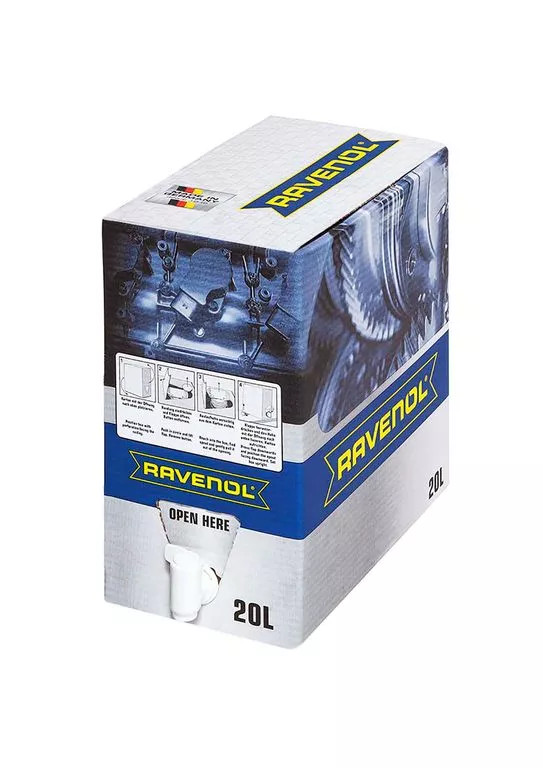

RAVENOL ATF DEXRON III H 20 L
RAVENOL ATF DEXRON III H 20 L

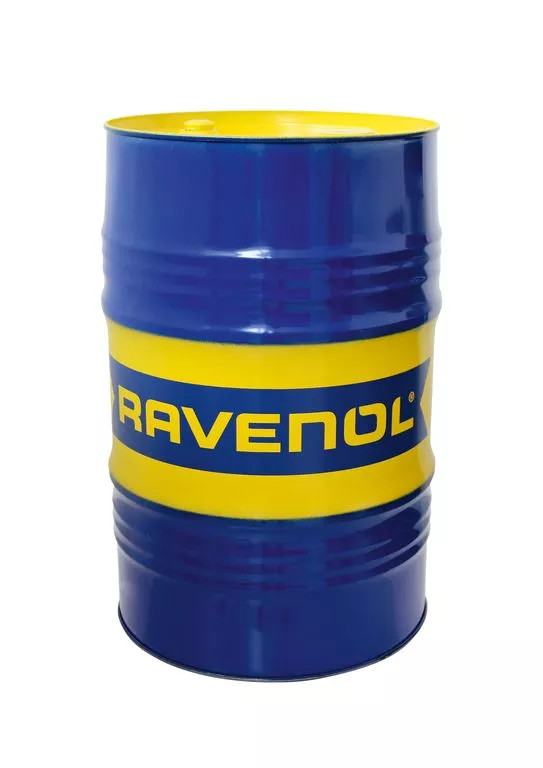

RAVENOL ATF DEXRON III H 60 L

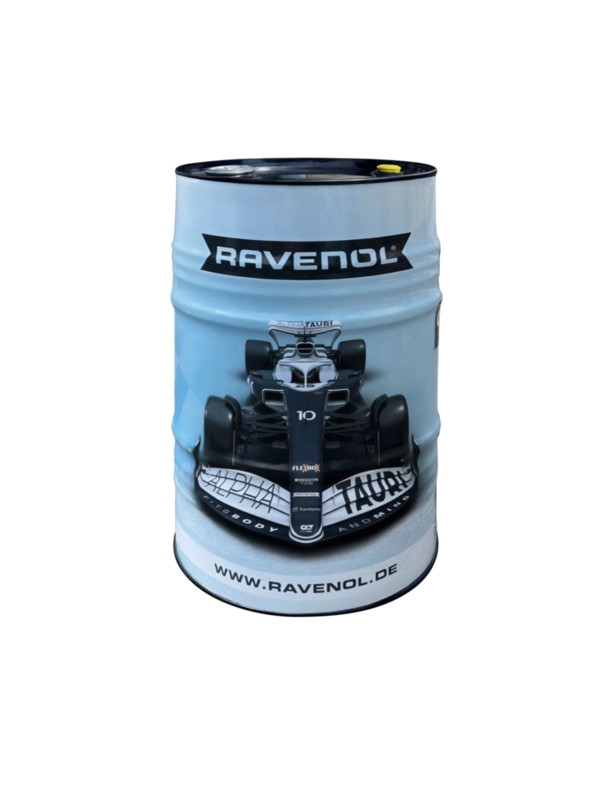

RAVENOL ATF DEXRON III H 60 L

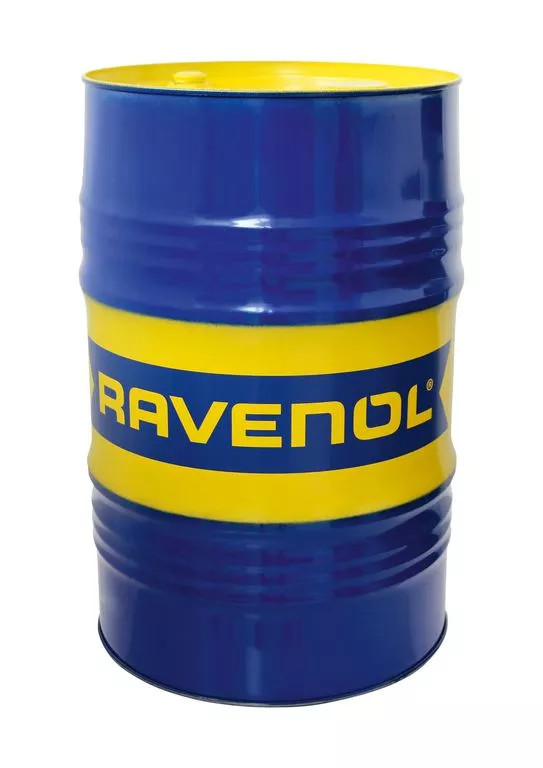

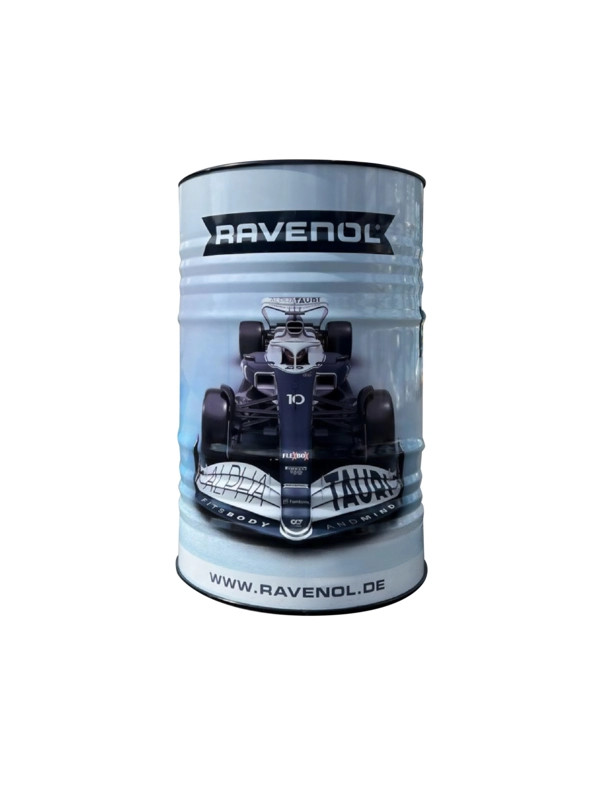

RAVENOL ATF DEXRON III H 208 L
RAVENOL ATF DEXRON III H 208 L

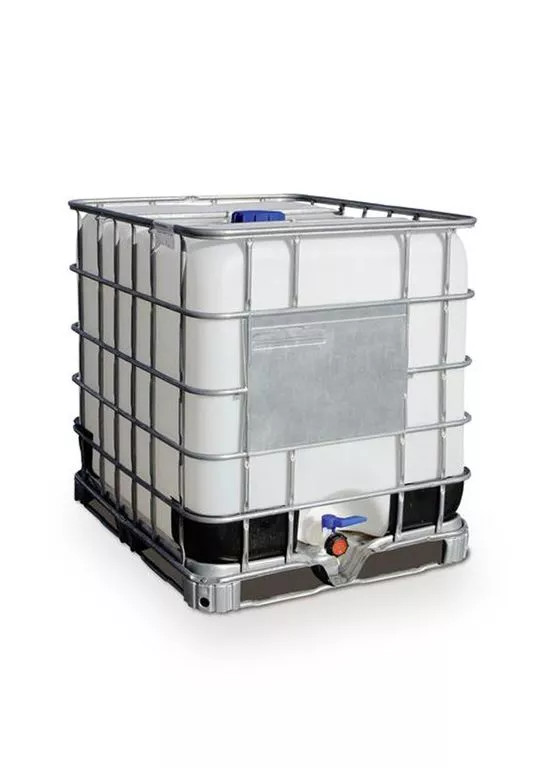

RAVENOL ATF DEXRON III H 1000 L
Category: Gear oil for automatic transmissions
Item number: 1212100
Application: Truck , Agricultural machinery , Car
Oil type: Synthetic
Specifications: Allison C4 , Allison TES-389 , GM Dexron® II E , GM DEXRON® III F , GM DEXRON® III H
Approvals: Allison C4-32642009 (ATF III H) , Allison TES-389 AA-33072010 (ATF III H) , Voith H55.6336.3x Extended Drain (G1363) , ZF TE-ML 04D (ZF001609) , ZF TE-ML 14B (ZF001609) , ZF TE-ML 20B (ZF001609) , ZF TE-ML 25B (ZF001609)
Recommendations: Caterpillar TO-2 , DTFR 13C100 (MB 236.1) , DTFR 13C170 (MB 236.9) , FORD MERCON® M-940717 , MAN 339 V1 , MAN 339 Z1 , MAN 339 Z2 , MB 236.1 , MB 236.10 , MB 236.5 , MB 236.6 , MB 236.9 , Nissan intern , VOLVO 1161521 , VOLVO 1161621 , VOLVO Transmission Oil 97341 , ZF TE-ML 02F , ZF TE-ML 03D , ZF TE-ML 05L , ZF TE-ML 14A , ZF TE-ML 16L , ZF TE-ML 16R , ZF TE-ML 17C

RAVENOL ATF DEXRON III H is a synthetic ATF (Automatic Transmission Fluid), designed on the basis of high quality hydrocrack oils with a special additive and inhibition, which ensure a perfect function of theautomatic transmission.

RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.

Application note

RAVENOL ATF DEXRON III H was developed for use in automatic transmissions with electronically controlled converter lockup clutch.

RAVENOL ATF DEXRON III H is especially suitable for use in transmissions with ATF Dexron III H specification.

RAVENOL ATF DEXRON III H is backwards compatible and can be used in transmissions with specification ATF Dexron F III.

RAVENOL ATF DEXRON III H is mixable with all ATF brands. It is advised to rinse with RAVENOL ATF DEXRON III H before, beforehand the final filling with RAVENOL ATF DEXRON III H is made.

Characteristics

  • a very good lubricating ability even at low temperatures in winter
  • a high, stable viscosity index
  • a very low pour point
  • a very good oxidation stability
  • protection against wear, corrosion and foam formation
  • good balanced coefficient of friction
  • a neutral behaviour against sealing materials
  • a neutral behaviour because of inhibition against non ferrous metals

Technical data

Property Unit Data Audit
Aussehen/Farbe rot VISUELL
Seq. I bei 24 °C ml/ml 0/0 ASTM D892
Seq. II bei 93,5 °C ml/ml 0/0 ASTM D892
Seq. III bei 24 °C nach 93,5 °C ml/ml 0/0 ASTM D892
TBN mg KOH/g 1,8 ASTM D2896
Viskosität bei 100 °C mm²/s 7,2 DIN 51562-1
Viskosität bei 40 °C mm²/s 33,9 DIN 51562-1
Viskositätsindex VI 185 DIN ISO 2909
Brookfield Viskosität bei -40 °C mPa*s 14.200 ASTM D2983
Cu-Korrosion bei 121 °C 1b ASTM D130
Dichte bei 20 °C kg/m³ 847,0 EN ISO 12185
Flammpunkt °C 210 DIN EN ISO 2592
Pourpoint °C -51 DIN ISO 3016
